KEYENCE GT2-CH2M New and Original High quality

GT2-CH2M

The Keyence brand GT2-CH2M model is a high-performance contact digital sensor that uses high-precision linear encoder technology to achieve micrometer level displacement measurement by directly contacting the target object. Its core advantage lies in its high repeatability accuracy of ± 0.1 μ m and linear accuracy of ± 0.5 μ m, which can accurately capture small deformations or positional changes of objects, especially suitable for scenarios such as precision machining, semiconductor manufacturing, and scientific research experiments that require extremely high measurement accuracy. The device supports 10-30V DC wide voltage input, compatible with NPN/PNP dual-mode output, and is equipped with a 6+1/2 bit red LED display and dual color status indicator lights, providing real-time feedback on measurement values and operating status. In addition, its IP67 protection level ensures stable operation in a wide temperature range of -10 ℃ to+50 ℃ and harsh environments such as humidity and dust. The modular design supports multi-channel expansion (up to 15 units can be connected), meeting the multi-dimensional detection needs of complex automated production lines.

Technical specifcations for GT2-CH2M

basic parameters

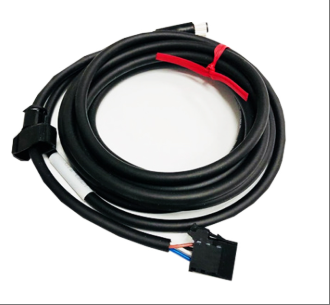

Model and type: GT2-CH2M, belonging to the Keyence GT2 series sensing head cable, is a connecting cable for contact digital sensors.

Length: 2 meters standard length, supports free cutting to adapt to different installation requirements, and requires the use of a dedicated connector (such as OP-84338) to connect the monitor or amplifier during cutting.

End shape: M8 straight interface, ensuring compatibility and stability with GT2 series sensors.

Weight: Approximately 80 grams, lightweight design for easy installation and wiring.

2、 Electrical performance

Power supply voltage: compatible with DC 12V to 24V (± 10% fluctuation), suitable for the wide voltage power supply requirements of industrial automation equipment.

Response time: 500 microseconds, with fast response characteristics that meet high-speed detection scenarios.

Pressure resistance: 1.5MPa, supporting reliable operation in high-pressure environments.

Protection circuit: integrates reverse polarity protection, overcurrent protection, and surge absorber to enhance equipment safety and durability.

3、 Environmental adaptability

Protection level: The shell protection level reaches IP69K (in accordance with DIN standards), with dustproof, waterproof, and high-pressure flushing capabilities.

Working temperature range: -20 ℃ to+55 ℃, suitable for extreme temperature environments.

Humidity range: 35% to 85% RH (non condensing), ensuring stability in humid environments.

Seismic resistance: Excellent vibration resistance performance with a double amplitude of 1.5mm and a 2-hour vibration test in both X/Y/Z directions at frequencies ranging from 10Hz to 55Hz.

4、 Machinery and Structure

Material: Made of oil resistant and corrosion-resistant materials, suitable for oily or chemically corrosive environments.

Installation method: Supports surface mounted installation and adapts to various industrial equipment layouts.

Color: Black casing enhances device recognition and aesthetics.

5、 Functions and Applications

Compatibility: Designed specifically for GT2 series sensors, such as GT2-71N, GT2-H12, etc., to ensure signal transmission stability.

Applicable scenarios: Industrial automation control, precision machining, semiconductor manufacturing, and other fields to meet high-precision detection requirements.

Accessories: Standard operating manual, bracket, and power cable to simplify installation and debugging process.
