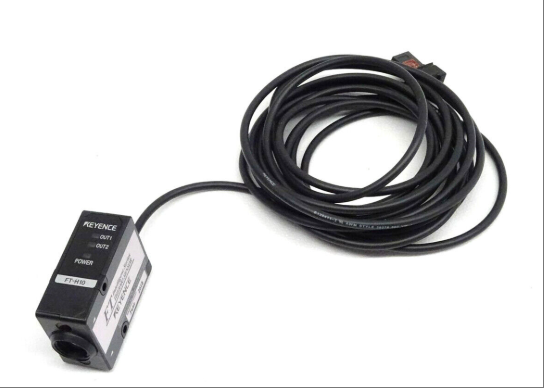

KEYENCE FT-H10 New and Original High quality

FT-H10

The FT-H10 model is a high-precision, compact fiber optic sensor that uses the principle of beam to beam detection and achieves stable detection through independent fiber optic transmission and reception units. Its core advantage lies in its ability to detect extremely small objects, accurately identifying tiny targets as low as ø 0.005mm, suitable for scenarios such as electronic components and precision machining that require extremely high detection accuracy. The device supports dual mode output of NPN/PNP, is compatible with multiple control systems, and has an IP67 protection level. It can operate stably in a wide temperature range of -10 ℃ to+50 ℃, as well as in harsh environments such as humidity and dust. In addition, its fast response time (as short as 0.5ms) and high repeatability accuracy (± 0.002mm) ensure the detection efficiency and accuracy on high-speed production lines, and are widely used in fields such as semiconductor manufacturing, pharmaceutical packaging, and automated assembly lines.

Technical specifcations for FT-H10

Core detection parameters

detectability

Minimum detectable object: ø 0.005mm (for opaque bodies), suitable for precise identification of small components or defects.

Detection mode: Opposite type, stable detection is achieved through independent fiber optic transmission and reception units.

Optical axis and fiber parameters

Optical axis diameter: ø 2.3mm, ensuring stable transmission of the beam.

Fiber optic device length: The standard configuration is 2 meters and supports free cutting to meet different installation requirements.

Minimum bending radius: R1mm, to avoid signal attenuation caused by excessive bending of the optical fiber.

2、 Electrical and Signal Parameters

Power supply voltage: 12-24V DC, compatible with various industrial power supply environments.

Output signal: Supports dual mode output of NPN/PNP, suitable for different control systems.

Response time: minimum 0.5ms, meeting the requirements of high-speed detection.

Repetition accuracy: ± 0.002mm, ensuring the stability and reliability of the test results.

3、 Environmental adaptability parameters

Protection level: IP67 (IEC60529 standard), with dustproof and waterproof capabilities.

Working temperature range: -10 ℃ to+50 ℃ (without freezing), suitable for extreme temperature environments.

Humidity range: 35% -85% RH (non condensing), ensuring reliability in humid environments.

Anti interference capability: It can resist interference from 10000lux incandescent lamps and is suitable for strong lighting scenarios.

4、 Mechanical and structural parameters

Installation method: Supports DIN rail installation or bracket fixation, suitable for compact industrial equipment layout.

Size and weight:

Size: Compact design, please refer to the product manual for specific dimensions.

Weight: Lightweight design, easy to integrate and install.

Material: Made of corrosion-resistant and high-temperature resistant materials to ensure long-term stable operation.

5、 Function and Features

Display and indication: Equipped with LED indicator lights, providing real-time feedback on detection status.

Sensitivity adjustment: Supports external knob or software adjustment to optimize detection results.

Certification standard: Complies with UL/CSA standards to ensure product safety.

The FT-H10 fiber optic sensor, with its high precision, fast response, and environmental resistance, is widely used in industrial scenarios such as semiconductor manufacturing, precision machining, and automated assembly lines that require extremely high detection accuracy.
