KEYENCE GT2-71CP New and Original High quality

GT2-71CP

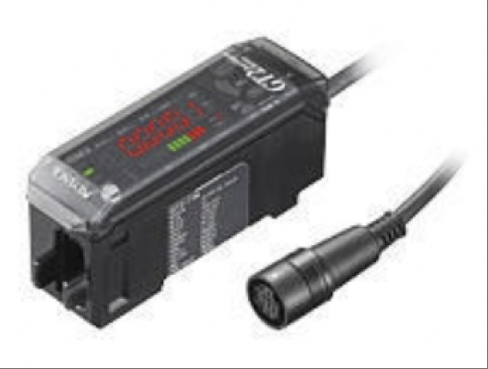

The GT2-71CP amplifier unit is a high-precision connector type device designed specifically for industrial automation. It adopts PNP output mode and supports DIN rail installation. It can be combined with GT2 series sensor heads to achieve micrometer level displacement or position detection. Its core functions include a 6+1/2 bit 7-segment LED red display and a dual color 13 level bar LED indicator light, which can display measurement values (-19999.9 to+19999.9) and multi-level status in real time; Control output supports HH/HI/GO/LO/LL five level PNP collector open circuit signals (maximum 30V/50mA, residual voltage ≤ 1V), with adjustable response time (3/5/10/100/500/1000ms), meeting high-speed detection requirements. The device is compatible with 10-30VDC wide voltage input (including 10% ripple), with a power consumption of ≤ 2200mW (≤ 73.3mA at 30V) in standard mode and ≤ 1700mW (≤ 56.7mA at 30V) in environmental protection mode. It also has an IP67 protection level and can operate stably in environments ranging from -10 ℃ to+50 ℃ (no freezing), 35% -85% RH (no condensation), and 10-55Hz vibration. Its modular design supports the combination of main devices and expansion devices (up to 15 units can be connected), and provides intuitive feedback on the operating status through dual color indicator lights. It is suitable for scenarios such as precision machining, semiconductor testing, and automated assembly lines.

Technical specifcations for GT2-71CP

Basic specification parameters

Brand and Model: KEYENCE GT2-71CP, a connector type amplifier unit suitable for industrial automation displacement/position detection.

Output type: PNP collector open circuit output, compatible with mainstream control systems.

Installation method: Supports DIN rail installation, suitable for compact industrial equipment layout.

Protection level: IP67 (IEC60529 standard), with dustproof and waterproof capabilities, suitable for harsh environments.

2、 Electrical performance parameters

Power supply voltage: 10V to 30V DC (including 10% ripple), in compliance with Class 2 standards, with strong voltage fluctuation tolerance.

Power consumption:

Standard mode: Maximum 2200mW (approximately 73.3mA at 30V).

Environmental protection mode: up to 1700mW (approximately 56.7mA at 30V), reducing energy consumption.

Display parameters:

Measurement display: 6+1/2 bit 7-segment red LED, display range -19999.9 to+19999.9, resolution 0.1 μ m.

Status indicator light: dual color 13 level bar LED (red/green), providing real-time feedback on the operating status.

3、 Control and response parameters

Control output: Supports HH/HI/GO/LO/LL five level PNP collector open circuit signal, maximum 30V/50mA, residual voltage ≤ 1V.

Response time: Adjustable gears include 3ms, 5ms, 10ms, 100ms, 500ms, 1000ms, suitable for different detection speed requirements.

Scalability: Supports the combination of main and expansion devices (up to 15 units) to meet multi-channel detection requirements.

4、 Environmental adaptability parameters

Temperature range: Operating temperature -10 ℃ to+50 ℃ (without freezing), storage temperature -20 ℃ to+60 ℃.

Humidity range: 35% to 85% RH (non condensing), suitable for high humidity environments.

Seismic resistance: Double amplitude of 1.5mm from 10Hz to 55Hz, 2 hours in X/Y/Z directions, excellent vibration resistance.

5、 Material and structural parameters

Main material:

Shell: polycarbonate, lightweight and impact resistant.

Touch key: Polyformaldehyde, with excellent wear resistance.

Front panel: PET, resistant to chemical corrosion.

Cable: PVC, with good flexibility.

Size and weight:

Length: Please refer to the manual for specific dimensions and adapt to compact spaces.

Weight: Lightweight design, easy to integrate and install.

6、 Functional characteristic parameters

Display resolution: 0.1 μ m, meeting high-precision detection requirements.

Control input: Supports timing/preset/reset/channel input, no voltage input, response time ≥ 2ms.

Expansion restrictions:

When connecting 2 to 8 units, the power supply voltage is 20V to 30V DC, and the control output current is ≤ 20mA.

When connecting 9 to 15 units, the power supply voltage is 20V to 30V DC, the controlled output current is ≤ 10mA, and the residual voltage is ≤ 1.5V.

Certification standard: Complies with UL/CSA standards to ensure safety compliance.
