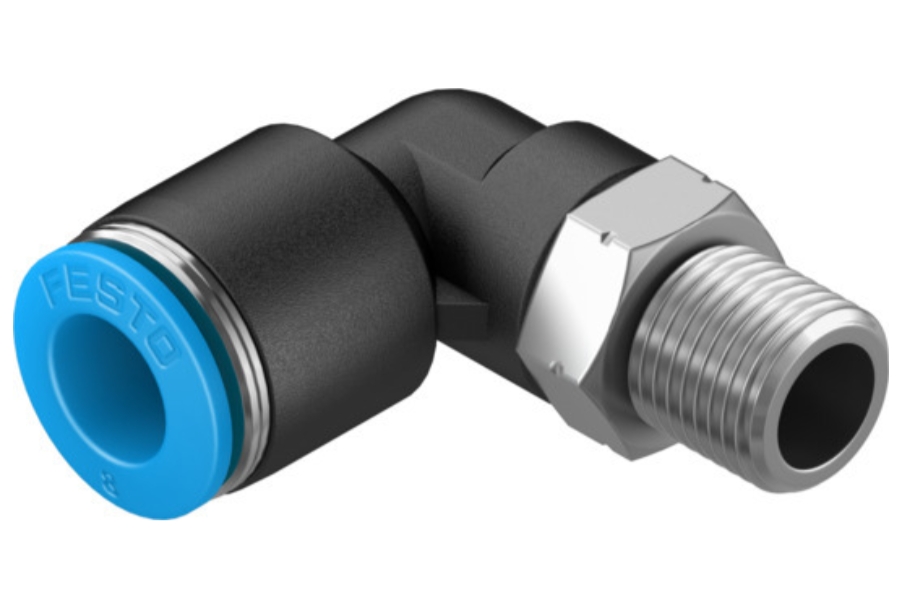

Festo QSL-1/8-8 Push-in L-fitting Brand new

Festo QSL-1/8-8 Push-in L-fitting

Description

The Quick Star QSL range offers a convenient push-in fitting system for compressed air and water with over 1000+ types of standard and function fittings. These high quality, male or female threaded to tube adapters offer a variety of Metric, G parallel or R tapered threads and diameters to suit each and every connection.

Information

• Maximum flexibility for each pneumatic fitting

• Effortless, quick and simple push-in installation

• L shaped elbow pneumatic fitting

• Tube to tube (hose) connection style for use in pneumatic applications

• Wide operating temperature range of -10 to +80°C

• Air pressure ranges of up to 14 bar

• Available with a variety of different fitting connector sizes

• Strong and durable thermoplastic (PBT)

• Can be rotated in any direction

Technical Data

Size：Standard

Nominal width：7 mm

Type of seal on screwed plug：Coating

Mounting position：Any

Design：L-shape

Pack size：10

Structural design：Push-pull principle

Operating pressure for entire temperature range：-0.095 MPa ... 0.6 MPa

Operating pressure for entire temperature range：-0.95 bar ... 6 bar

Operating pressure for entire temperature range：-13.775 psi ... 87 psi

Temperature-dependent operating pressure：-0.095 MPa ... 1.4 MPa

Temperature-dependent operating pressure：-0.95 bar ... 14 bar

Temperature-dependent operating pressure：-13.775 psi ... 203 psi

Information on operating pressure：Water: max. 0.6 MPa at max. 50 °C

Operating medium：Compressed air as per ISO 8573-1:2010 [7:-:-]  Water (liquid, ice-free)

Information on operating and pilot media：Operation with oil lubrication possible

Corrosion resistance class (CRC)：1 - Low corrosion stress

LABS (PWIS) conformity：VDMA24364-B1/B2-L

Cleanroom class：Class 4 according to ISO 14644-1

Ambient temperature：-10 °C ... 80 °C

Nominal tightening torque：7 Nm

Tolerance for nominal tightening torque：± 20%

Product weight：14 g

Type of mounting：External hexagon, AF 17

Pneumatic connection 1：External thread R1/8

Pneumatic connection 2：for pneumatic tubing outside diameter 8 mm

Releasing ring color：Blue

Note on materials：RoHS-compliant

Housing material：Brass, nickel-plated

Releasing ring material：POM

Material of tubing seal：NBR

Material of tube retaining claw：High-alloy stainless steel
