Festo LRMA-QS-6 153496 New and Original High quality

LRMA-QS-6 153496

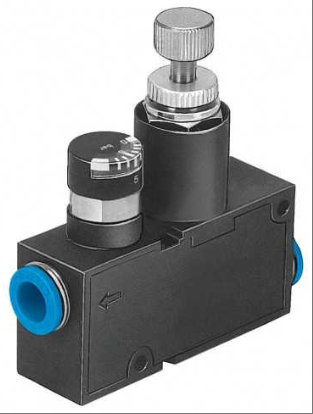

Festo LRMA-QS-6 (153496) is a directly controlled piston regulated pressure reducing valve designed specifically for pneumatic systems, featuring constant output pressure and a second exhaust channel function. Its core parameters include:

Pressure control: regulating range 1~8 bar, input pressure 10~9 bar, standard rated flow rate 76 l/min;

Interface and installation: QS-6 quick plug connector is used, with through-hole installation type, and the assembly position is arbitrary;

Environmental adaptability: Operating temperature range of 0-60 ° C, shell material of reinforced PBT, working medium of filtered compressed air (compliant with ISO8573-1:2010 standard);

Structure and characteristics: Directly controlled piston regulator, driver lock with locking nut, integrated pressure gauge design, product weight 45 g;

Materials and Sealing: The flange screws are nickel plated brass, and the thread sealing material is PTFE to ensure long-term sealing reliability.

This model is widely used in industrial automation, pneumatic control, and precision equipment due to its high-precision pressure control, compact structure, and easy installation. It is a key component for stable pressure output in pneumatic systems.

Technical specifcations for LRMA-QS-6 153496

Model and identification

model: LRMA-QS-6

Product Code: 153496

Brand: FESTO (Festo, Germany)

Pressure control range

Output pressure range: 1 bar to 8 bar

Input pressure range: 10 bar to 9 bar (specific values need to be adjusted according to operating conditions)

Traffic characteristics

Standard rated flow rate: 76 l/min

Interface specifications

Gas interface (port 1): QS-6

Gas interface (port 2): QS-6

Structure and Materials

Installation type: with through-hole, assembly position arbitrary

Shell material: PBT reinforced plastic

Working medium: filtered compressed air (compliant with ISO8573-1:2010 standard)

Environmental temperature: 0 ° C to 60 ° C

performance and reliability

Design Structure: Directly Controlled Piston Regulator

Pressure gauge: Integrated pressure gauge, visually displaying numerical values

Exhaust channel: equipped with a second exhaust channel to improve response speed

Drive lock: equipped with a locking nut to prevent tampering with the set parameter values

Product weight: 45 g

Materials and Sealing

Flange screw material: brass nickel plated

Thread sealing material: PTFE (polytetrafluoroethylene)

Application and Authentication

Application areas: industrial automation, pneumatic control, precision equipment, etc

Certification: Passed CE certification and meets industrial safety standards
