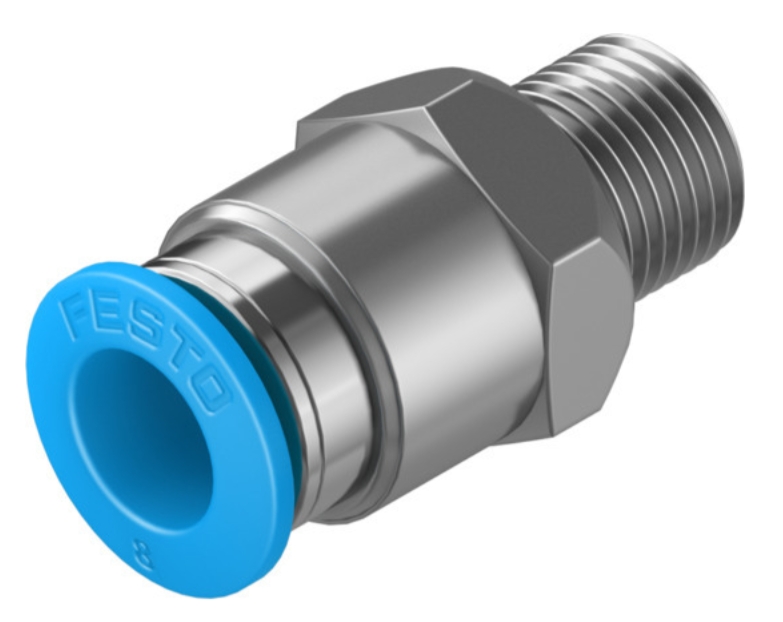

Festo QS-1/8-8 Push-in fitting Brand new

Festo QS-1/8-8 Push-in fitting

Description

The Quick Star QS range offer a convenient push-in fitting system for compressed air and water with over 1000+ types of standard and function fittings. These high quality, male threaded to tube adapters offer a variety of Metric, G parallel or R tapered threads and diameters to suit each and every connection.

Information

• Maximum flexibility for each pneumatic fitting

• Effortless, quick and simple push-in installation

• Threaded to tube (hose) connection style for use in pneumatic applications

• Wide operating temperature range of -10 to +80°C

• Air pressure ranges of up to 14 bar

• Available with a variety of different thread and diameter connector sizes

• Robust, solid nickel-plated brass with high resistance to corrosion

Technical Data

Size：Standard

Nominal size：6 mm

Type of seal on screwed plug：Coating

Mounting position：optional

Design：Straight design

Size of pack：10

Design：Push-pull principle

Operating pressure complete temperature range：-0.095 MPa ... 0.6 MPa

Operating pressure complete temperature range：-0.95 bar ... 6 bar

Operating pressure complete temperature range：-13.775 psi ... 87 psi

Temperature-dependent operating pressure：-0.095 MPa ... 1.4 MPa

Temperature-dependent operating pressure：-0.95 bar ... 14 bar

Temperature-dependent operating pressure：-13.775 psi ... 203 psi

Note on operating pressure：Water: max. 0.6 MPa at max. 50°C

Operating medium：Compressed air to ISO 8573-1:2010 [7:-:-]  Water (liquid, ice-free)

Note on operating and pilot medium：Lubricated operation possible

Corrosion resistance class CRC：1 - Low corrosion stress

LABS (PWIS) conformity：VDMA24364-B1/B2-L

Cleanroom class：Class 4 according to ISO 14644-1

Ambient temperature：-10 °C ... 80 °C

Nominal torque：7 Nm

Tolerance for nominal tightening torque：± 20%

Product weight：14 g

Type of mounting：External hexagon, size 14 mm

Pneumatic connection, port 1：Male thread R1/8

Pneumatic connection, port 2：For tubing outside diameter of 8 mm

Colour of release ring：Blue

Note on materials：RoHS-compliant

Material housing：Brass, nickel-plated

Material release ring：POM

Material tubing seal：NBR

Material tubing clamp component：High-alloy stainless steel
