Festo FENG-40-200-KF 34502 New and Original High quality

FENG-40-200-KF 34502

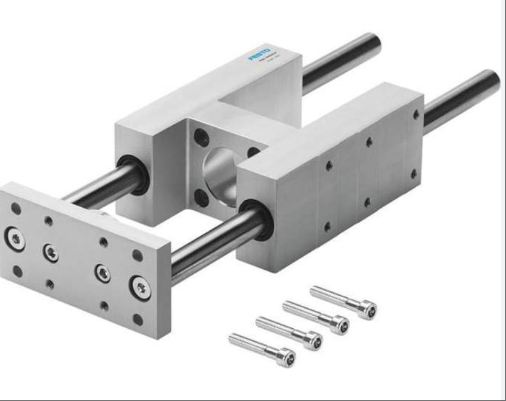

Festo FENG-40-200-KF 34502 is a high-performance directional cylinder that complies with the ISO 15552 standard, designed specifically for high-precision linear motion in industrial automation. Its cylinder diameter is 40mm, stroke is 200mm, and it adopts a circulating ball bearing guiding structure with anti torsion function, which can provide high guiding accuracy and low friction operation, suitable for scenarios that require high load stability and anti eccentric load capability.

The core features of this product include:

High precision guidance: The design of circulating ball bearings ensures the straightness of the piston rod during reciprocating motion, reducing wear and extending service life;

Wide temperature adaptability: The working temperature range is -20 ° C to+80 ° C, suitable for various industrial environments;

Flexible installation: supports any assembly position, equipped with internal thread interface, easy to integrate into automation equipment;

Materials and Protection: The guiding element is made of heat-treated steel, and the shell is made of forged aluminum alloy, which complies with RoHS standards and balances strength and lightweight requirements;

Modular design: Expandable proximity switches and other sensors to achieve position feedback and precise control.

FENG-40-200-KF is widely used in scenarios such as workpiece handling, assembly automation, and machine tool loading and unloading, providing efficient and reliable linear motion solutions for industrial applications.

Technical specifcations for FENG-40-200-KF 34502

Specification

model: FENG-40-200-KF 34502

Guidance structure: Circular ball bearing guidance

Piston diameter: 40 mm

Travel distance: 200 mm

Installation method: Any assembly position, with internal threads

performance parameter

Maximum working force (dynamic):

Axial force (Fy): 1150 N (dynamic)/1560 N (static)

Lateral force (Fz): 1150 N (dynamic)/1560 N (static)

Maximum torque:

Around the X-axis (Mx): 43 Nm (dynamic)/58 Nm (static)

Around the Y-axis (My): 52 Nm (dynamic)/70 Nm (static)

Around the Z-axis (Mz): 52 Nm (dynamic)/70 Nm (static)

Environmental temperature:- 20 ° C to+80 ° C

Maximum displacement force: 15 N

Structure and Material

Material of guiding element: heat-treated steel

Shell material: forged aluminum alloy (anodized treatment)

Weight: 2210 g

Installation and Connection

Installation type: Internal thread installation

Material note: Compliant with RoHS standards, does not contain brass or PTFE

other characteristics

Compliant with standards: VDMA 24364-B2-L

Design features:

Provide high-precision guidance and anti torsion

Suitable for linear motion scenarios with high load and anti bias capacity

This model of product is widely used in industrial scenarios such as workpiece handling, assembly automation, and machine tool loading and unloading, providing reliable linear motion solutions for automation equipment.
