PUN-H-8X1,25-BL

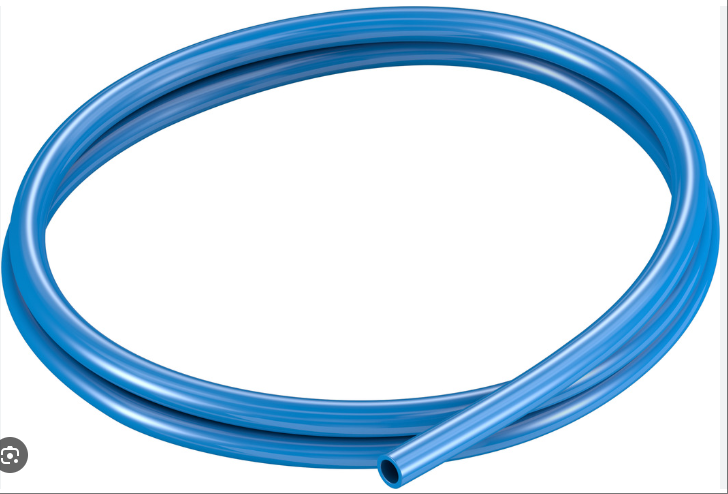

The Festo brand PUN-H-8X1,25-BL plastic air hose is a high-performance pneumatic component product. This product is made of polyurethane (TPE-U) material, which has excellent wear resistance, compression resistance, and bending resistance. It can maintain stable performance under long-term stress and adapt to a wide temperature range (-35 ° C to 60 ° C). Its outer diameter is 8mm and inner diameter is 5.7mm. The standard outer diameter design makes it compatible with various quick plug connectors (such as QS series) and hook and loop connectors (inner diameter 6mm, with connecting nuts), suitable for complex working conditions such as drag chains. The working pressure range of this trachea is -0.95bar to 10bar, and it is a compressed air working medium that complies with ISO 8573-1:2010 standard. The blue appearance is easy to identify. The product has passed RoHS certification, with reliable quality and a unit length weight of 0.0287kg/m. It is widely used in pneumatic systems in automation equipment, industrial machinery and other fields, and is an ideal choice for fluid transmission.
Technical specifcations for PUN-H-8X1,25-BL
Outer diameter and inner diameter
Outer diameter: 8mm
Inner diameter: 5.7 mm
Working pressure
Scope:- 0.95 bar to 10 bar
ambient temperature
Scope:- 35 ° C to 60 ° C
Materials and Characteristics
Material: Polyurethane (TPE-U)
Color: Blue
Shore hardness: D 52 ± 3
Free of brass and PTFE, compliant with RoHS standards
bending radius
Minimum bending radius: 21 mm
Bending radius related to flow: 37 mm
quality
Unit length weight: 0.0287 kg/m
Working medium
Compressed air (compliant with ISO 8573-1:2010 standard)
Pneumatic interface
Used for quick connect fittings (outer diameter 8 mm)
Used for barb joint (inner diameter 6 mm, with connecting nut)
