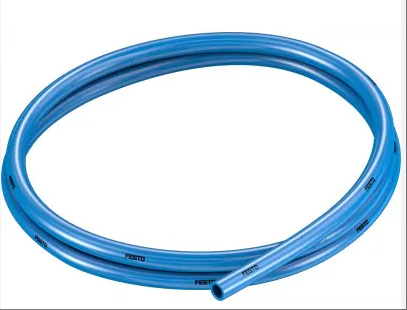

PUN-8X1,25-BL 159666
Festo brand PUN-8X1,25-BL (order number 159666) plastic air hose is a high-performance pneumatic component product. The trachea is made of polyurethane (TPE-U/PU) material, which has excellent wear resistance, compression resistance, and bending resistance. It can maintain stable performance under long-term stress and adapt to a wide range of temperature changes (-35 ° C to 60 ° C). Its outer diameter is 8mm and inner diameter is 5.7mm. The standard outer diameter design makes it compatible with QS quick connect fittings and CN, CK polyurethane fittings (not applicable to the food industry). This product has a bending radius of 37mm related to flow rate, a minimum bending radius of 24mm, a working pressure range of -0.95 to 10 bar, and a working medium of compressed air or vacuum that meets the ISO8573-1:2010 standard. The color of the trachea is blue, with a Shore hardness of D52 ± 3. It does not contain brass or PTFE and complies with RoHS environmental standards. The quality has been certified by T Ü V and the weight per unit length is 0.0302kg/m. This product is widely used in the fields of biotechnology, culture and sports, packaging, textile, and comprehensive industry, and is an ideal fluid transmission solution in pneumatic systems.
Technical specifcations for PUN-8X1,25-BL 159666
Outer diameter and inner diameter
Outer diameter: 8mm
Inner diameter: 5.7 mm
bending radius
Bending radius related to flow: 37 mm
Minimum bending radius: 24 mm
Work pressure and environmental temperature
Work pressure range:- 0.95 bar to 10 bar
Environmental temperature range:- 35 ° C to 60 ° C
Materials and Characteristics
Material: TPE-U (PU, polyurethane)
Color: Blue
Shore hardness: D 52 ± 3
Free of brass and PTFE, compliant with RoHS standards
Other
Quality: 0.0302 kg/m (depending on length)
Working medium: Compressed air (compliant with ISO8573-1:2010 standard)
Authorized Certification: T Ü V
Application Description:
This product is suitable for QS quick connect fittings, CN and CK polyurethane fittings, and cannot be used in the food industry. Its standard outer diameter design ensures compatibility with various pneumatic components, making it suitable for industrial scenarios that require high wear resistance, compression resistance, and bending resistance.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
