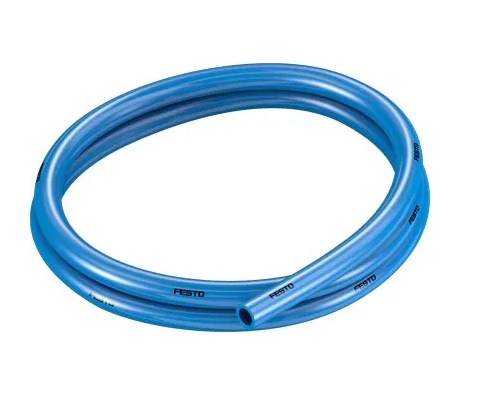

Festo PUN-12X2-BL 159670 Plastic tubing
Description
The Festo 159670 PUN-12X2-BL plastic tubing delivers reliable performance in a wide range of pneumatic applications. Designed for durability, this high-quality tubing offers flexibility and resilience, ensuring smooth operation in demanding environments. Its bright blue colour provides clear visibility, making it easy to identify within complex systems.
Information
This plastic tubing is crafted to maintain consistent airflow, helping to optimise efficiency and minimise disruptions. Its lightweight yet robust design makes handling effortless, allowing for quick adjustments and seamless integration into various setups. Whether used in industrial automation, manufacturing, or general pneumatic systems, it provides a dependable solution for air supply and distribution.
With a strong, flexible construction, this tubing resists kinking and deformation, even when subjected to frequent movement or challenging conditions. It retains its shape under pressure, ensuring a secure and efficient connection every time. The high-quality material also offers resistance to wear, helping to extend the lifespan of pneumatic systems.
Technical Data
Flow-Relevant Bending Radius:62mm
Inside Diameter:8.0mm
Operating Medium:Compressed Air, Vacuum
Ambient Temperature:-30...60 Degrees
Product Weight According To Length:0.0767 kg/m
Colour: Blue
Material:Polyurethane
Temperature-Dependant Operating Pressure:-0.95...10 Bar
Pneumatic Connection:12mm Push-In Fitting
Tubing Characteristics:Suitable For Energy Chains In Applications With High Cycle Rates
Tubing Test Conditions:Suitable For Energy Chains: > 5 Million Cycles To FN 942021
Conforms to Standard:German Technical Control Board (TUV)
Operating Pressure:-0.95...10bar
Fire Test Material:UL94 HB
Feature:Flexible
Min. Bending Radius:33.0mm
Outside Diameter:12.0mm
Manufacturer:Festo
Range:PUN
Wall Thickness:2.0mm
Commodity Code:39173200
Country of Origin:CZ
Weight:0.0850Kg
Pack Quantity:1
Outside diameter:12MM
Flow-relevant bending radius:62MM
Inside diameter:8MM
Min. bending radius:33MM
Tubing characteristics:Suitable for energy chains
Temperature-dependent operating pressure:-0.095MPA
Temperature-dependent operating pressure:1MPA
Temperature-dependent operating pressure:-0.95BAR
Temperature-dependent operating pressure:10BAR
Temperature-dependent operating pressure:-13.775PSI
Temperature-dependent operating pressure:145PSI
Approval:German Technical Control Board (Tu00dcV)
Certificate issuing authority:B 013277 0506 00
Operating medium:Compressed air to ISO 8573-1:2010 [7:-:-]
Fire test material:UL94 HB
LABS (PWIS) conformity:VDMA24364-B2-L
Ambient temperature:-35GC
Ambient temperature:60GC
Product weight according to length:0.0767K/M
Pneumatic connection:For push-in connector outside diameter of 12 mm
Standard colour:Blue
Shore hardness:D 52 +/-3
Note on materials:RoHS-compliant
Material tubing:TPE-U(PU)
Find the perfect accessories to complete your product assembly
QST-12
QST-8
QS-1/2-12
QS-1/4-8
