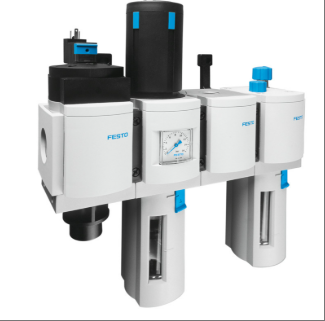

Festo MSB6-1/4:J2:W1 New and Original High quality

MSB6-1/4:J2:W1

Compact design and high compatibility: The module width is 62mm, supporting the installation of air circuit boards, with G-threaded interfaces, suitable for various installation scenarios;

Multi functional integration: It can be combined with filter pressure reducing valves, filters, oil mist devices, switch valves, soft start valves and other components to meet the needs of complex pneumatic systems;

Efficient filtration and stable output: filtration level of 0.01-40 μ m, working pressure range of 1.5-20 bar, pressure control range of 1-12 bar, ensuring compressed air quality and pressure stability;

Corrosion resistance and protection performance: The shell is made of die cast aluminum material, the cup cover is made of PC material, the corrosion resistance level is CRC2, the storage temperature is -10 to 60 ° C, and it is suitable for harsh industrial environments;

Safety and monitoring functions: Integrated pressure sensors and visual indicators, supporting electronic pressure monitoring and adjustable switching pressure, ensuring the safe operation of the system;

Flexible configuration and scalability: Supports pre-defined or freely configurable components, can combine branch modules, and adapt to different traffic ranges and application scenarios.

This model, with high integration, stable performance, and flexible configuration, has become a key component for compressed air processing in pneumatic systems, widely used in automated production lines, industrial robots, and precision equipment fields.

Technical specifcations for MSB6-1/4:J2:W1

model: MSB6-1/4:J2:W1

Product code: 530225 (corresponding to G1/4 interface fully manual model)

Series: MSB6 (MS series gas source treatment combination)

Interface and size

Interface size: G1/4

Module width: 62mm

Installation method: Air circuit board installation with G-thread

Filtering and pressure control

Filtering grade: 0.01-40 μ m (optional)

Working pressure range: 1.5-20 bar

Pressure control range: 1-12 bar

Standard rated flow rate: 1700-4800 l/min (depending on configuration)

Environment and Protection

Working temperature range:- 10 ° C to 60 ° C

Shell material: die cast aluminum

Cup cover material: PC (polycarbonate)

Corrosion resistance level: CRC 2

Protection level: IP65

Electrical and Control

Coil characteristics: 110V AC/220V AC/24V DC (optional)

Controller function: Constant output pressure, with initial pressure compensation and second exhaust channel

Display and Monitoring: Differential Pressure Display (Visual Indicator) with Pressure Sensor

Certification and Standards

Explosion proof certification: ATEX II 2G/II 3G (gas), Ex nA IIC T4 X Gc c T6 X； ATEX II 2D/II 3D (dust), Ex tc IIIC T105 ° C X Dc IP65 c 60 ° C X

Compliant with standards: EU-EMV, EU Ex Explosion proof, EU Low Voltage Directive

Application scenarios:

Suitable for industrial automation, pneumatic control systems, clean rooms, and ATEX explosion-proof areas, providing efficient compressed air treatment and stable pressure output.
