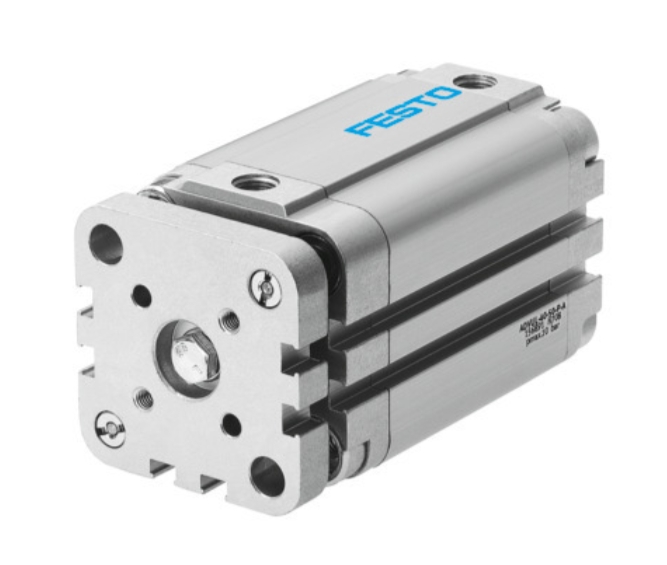

Festo ADVUL-32-30-P-A Compact cylinder
Description
Compact proximity sensing cylinder with piston rod secured against rotation by means of guide rod and yoke plate.
Information
Function:Double acting
Cushioning:Mechanical
Magnetic:Yes
Bore diameter (mm):32
Technical Data
Stroke:30 mm
Piston diameter:32 mm
Cushioning:Elastic cushioning rings/plates at both ends
Mounting position:optional
Design:Piston Piston rod
Position detection:Via proximity switch
Symbol:00991737
Variants:Piston rod at one end
Protection against torque/guide:Guide rod with yoke
Operating pressure:0.1 MPa ... 1 MPa
Operating pressure:1 bar ... 10 bar
Mode of operation:Double-acting
Operating medium:Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium:Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC:2 - Moderate corrosion stress
LABS (PWIS) conformity:VDMA24364-B1/B2-L
Ambient temperature:-20 °C ... 80 °C
Impact energy in end positions:0.4 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke:415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke:483 N
Moving mass for 0 mm stroke:111 g
Additional moving mass per 10 mm stroke:17 g
Basic weight for 0 mm stroke:362 g
Additional weight per 10 mm stroke:38 g
Type of mounting:Either:With through-hole With accessories
Pneumatic connection:G1/8
Material collar screws:Galvanised steel
Material cover:Wrought aluminium alloy
Material dynamic seals:NBR
TPE-U(PU)Material piston rod:High-alloy stainless steel
Material cylinder barrel:Wrought aluminium alloy
