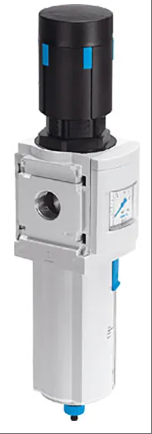

Festo MS6-LFR-1/4-D7-ERV-AS New and Original High quality

MS6-LFR-1/4-D7-ERV-AS

High flow and precise pressure regulation: The standard rated flow rate reaches 2500 l/min (standardized according to DIN 1343), and the pressure regulation range is 0.5-12 bar, meeting the requirements of high flow and high-precision pressure control;

Efficient filtration and maintenance: With a filtration level of 40 μ m, it effectively removes particulate impurities from compressed air and extends equipment lifespan;

Compact design and flexible installation: The pneumatic interface is G1/4, the module width is 62mm, and it supports the installation of air circuit boards, adapting to various installation scenarios;

Corrosion resistance and protection performance: The shell is made of die cast aluminum material with a corrosion resistance level of CRC 2, suitable for harsh industrial environments;

Safety and monitoring functions: integrated pressure gauge and adjustment knob, supporting manual locking adjustment, easy to operate and safe and reliable;

Scalability and compatibility: Other modules in the Festo MS series (such as oil mist generator, switch valve, etc.) can be combined to achieve flexible expansion of gas source processing functions.

This model, with high flow rate, precise pressure regulation, compact design, and corrosion resistance, has become the core component of compressed air treatment in pneumatic systems, widely used in automated production lines, industrial robots, and precision equipment fields.

Technical specifcations for MS6-LFR-1/4-D7-ERV-AS

Model and identification

model: MS6-LFR-1/4-D7-ERV-AS

Product Code: 529210

Interface and size

Pneumatic interface: G1/4

Module width: 62mm

Flow and pressure

Standard rated flow rate: 2500 l/min (standardized according to DIN 1343)

Pressure regulation range: 0.5 bar -12 bar

Filtering and Protection

Filtration grade: 40 μ m

Shell material: die cast aluminum

Corrosion resistance level: CRC 2

Environment and Temperature

Working temperature range: The specific range is not clearly marked and is usually applicable to industrial environment temperatures

Protection level: The specific level is not clearly marked, but it complies with industrial application standards

Function and Features

Adjustment method: manual adjustment, with lockable rotating handle

Condensed water discharge: not clearly labeled, but conventional models support manual or automatic drainage

Installation method: Supports installation of air circuit boards and adapts to various installation scenarios

Certification and Standards

Compliant with standards: Compliant with RoHS standards, compliant with general specifications for industrial automation pneumatic systems

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
