Festo ADVUL-16-20-P-A Compact cylinder Brand new

Festo ADVUL-16-20-P-A Compact cylinder

Description

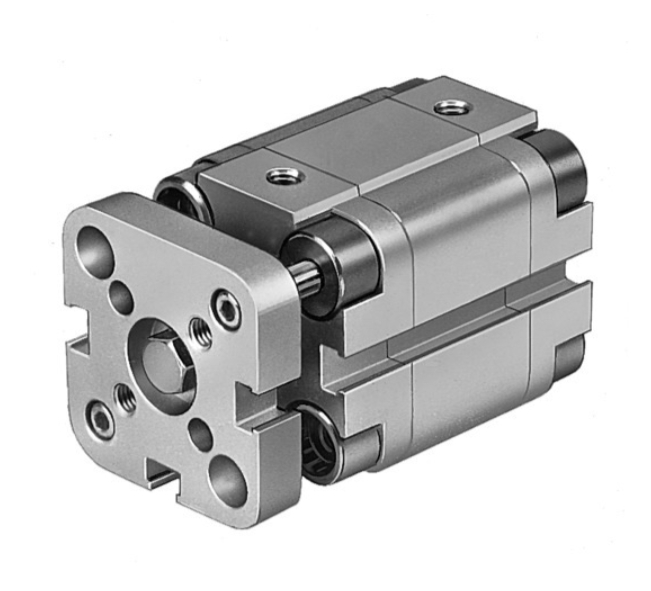

Double-acting cylinder with torsion-resistant piston rod by means of guide rod and yoke plate. A wide range of mounting options.

Information

・Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

・Corrosion resistance class (CRC): 2 - Moderate corrosion stress

・Cylinder Operation Method: Double Acting

・Piston rod secured against rotation by a guide rod and yoke plate

・Plain bearing

・Optionally with through piston rod

Technical Data

Stroke：20 mm

Piston diameter：16 mm

Cushioning：Elastic cushioning rings/plates at both ends

Mounting position：optional

Design：Piston  Piston rod

Position detection：Via proximity switch

Symbol：00991737

Variants：Piston rod at one end

Protection against torque/guide：Guide rod with yoke

Operating pressure：0.15 MPa ... 1 MPa

Operating pressure：1.5 bar ... 10 bar

Mode of operation：Double-acting

Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC：2 - Moderate corrosion stress

LABS (PWIS) conformity：VDMA24364-B1/B2-L

Ambient temperature：-20 °C ... 80 °C

Impact energy in end positions：0.1 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke：90 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke：121 N

Moving mass for 0 mm stroke：26 g

Additional moving mass per 10 mm stroke：6 g

Basic weight for 0 mm stroke：103 g

Additional weight per 10 mm stroke：16 g

Type of mounting：Either:With through-hole   With accessories

Pneumatic connection：M5

Material collar screws：High-alloy stainless steel

Material cover：Wrought aluminium alloy

Material dynamic seals：NBR TPE-U(PU)

TPE-U(PU)Material piston rod：High-alloy stainless steel

Material cylinder barrel：Wrought aluminium alloy

Find the perfect accessories to complete your product assembly

SMT-8M-A-PS-24V-E-0,3-M8D

SMT-10M-PS-24V-E-0,3-L-M8D

QSML-M5-6

VMPA1-M1H-J-PI
