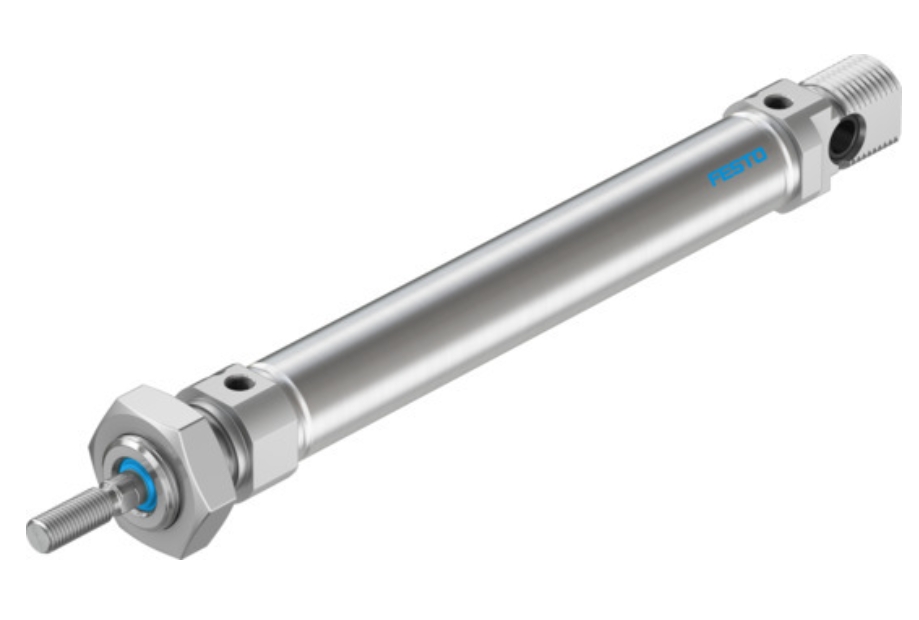

Festo DSNU-16-80-PPV-A ISO cylinder
Description
ISO cylinder
DSNU-16-80-PPV-A
Part number: 19231
★ Core product range
Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With adjustable end-position cushioning.
Specifications
Mode of operation ：double-acting
Piston diameter：16 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke ：120.6 N
Stroke：80 mm
Cushioning：adjustable at both ends, Pneumatic cushioning
Technical Data
Stroke：80 mm
Piston diameter：16 mm
Piston rod thread：M6
Cushioning：Pneumatic cushioning, adjustable at both ends
Mounting position：Any
Conforms to standard：CETOP RP 52 P ISO 6432
Piston rod end：External thread
Structural design：Piston Piston rod Cylinder barrel
Position sensing：For proximity sensor
Symbol：00991235
Variants：Piston rod at one end
Operating pressure：0.1 MPa ... 1 MPa
Operating pressure：1 bar ... 10 bar
Mode of operation：Double-acting
Operating medium：Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media：Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)：2 - Moderate corrosion stress
LABS (PWIS) conformity：VDMA24364-B1/B2-L
Cleanroom class：Class 6 according to ISO 14644-1
Ambient temperature：-20 °C ... 80 °C
Impact energy in the end positions：0.15 J
Cushioning length：12 mm
Theoretical force at 6 bar, retracting：103.7 N
Theoretical force at 6 bar, advancing：120.6 N
Moving mass at 0 mm stroke：2
Find the perfect accessories to complete your product assembly
SMBR-8-16
GRLA-M5-QS-6-D
LBN-12/16
FK-M6
