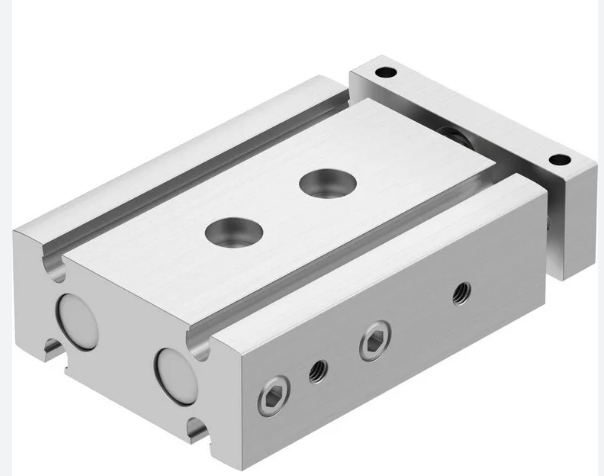

FESTO DGST-16-125-P1A Mini slide
The DGST-16-125-P1A Mini Slide delivers compact, precise linear guidance withextended travel (125mm) in a robust package, perfect for miniaturized systemsneeding reliable, low-friction movement.
Technical Data：
Manufacturer Nr.: DGST-16-125-P1A
Manufacturer: Festo
Stroke：125 mm
Adjustable end position range/length front：22.8 mm
Adjustable end position range/length rear：21.5 mm
Piston diameter：16 mm
Operating mode, drive unit：Yoke
Cushioning：Elastic cushioning rings/plates at both ends
Mounting position：optional
Guide：Recirculating ball bearing guide
Design：Twin piston Yoke Piston rod Slide
Position detection：Via proximity switch
Symbol：00991249
Operating pressure：0.1 MPa ... 0.8 MPa
Operating pressure：1 bar ... 8 bar
Operating pressure：14.5 psi ... 116 psi
Max. speed：0.8 m/s
Repetition accuracy：<= 0.3 mm
Mode of operation：Double-acting
Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity：VDMA24364-B1/B2-L
Ambient temperature：-10 °C ... 60 °C
Ambient temperature：-10 °C ... 60 °C
Impact energy in end positions：0.25 J
Cushioning length：1 mm
Max. force Fy：960 N
Max. force Fz：960 N
Max. moment Mx：14 Nm
Max. moment My：15 Nm
Max. moment Mz：15 Nm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke：207 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke：241 N
Moving mass：678 g
Product weight：1376 g
Type of mounting：With through-hole
Pneumatic connection：M5
Note on materials：RoHS-compliant
Material cover：Wrought aluminium alloy
Material seals：HNBR
Material guide：POM TPE-E High-alloy steel
Material housing：Wrought aluminium alloy
Material piston rod;High-alloy stainless steel
