DSBG-125-300-D3-PPVA-N3

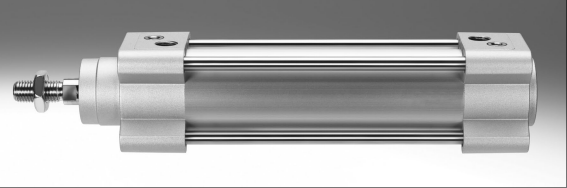

The Festo brand DSBG-125-300-D3-PPVA-N3 is a high-performance double acting standard cylinder designed specifically for industrial automation scenarios. This product complies with the ISO 15552 standard and features a 125mm piston diameter and a 300mm stroke length, providing stable and powerful linear motion output. Its pneumatic buffering technology (adjustable at both ends) effectively reduces impact and vibration, extending equipment life; Corrosion resistance level CRC 2 (medium protection) is suitable for general industrial environments, with a working temperature range of -20 ° C to+80 ° C. This model supports flexible installation and can be paired with various accessories (such as joint bearings, double earrings, etc.) to meet different application needs. The DSBG series cylinders have high reliability, long lifespan, and low maintenance costs as their core advantages, making them an ideal choice for improving the automation efficiency of industrial equipment.
Technical specifcations for DSBG-125-300-D3-PPVA-N3
model: DSBG-125-300-D3-PPVA-N3
Type: Double acting standard cylinder
structure parameters
Piston diameter: 125 mm
Travel length: 300 mm
Piston rod thread: M27 × 2
Buffer method: Pneumatic buffer (adjustable at both ends)
Installation method: Complies with ISO 15552 standard and supports multiple installation forms (such as internal thread installation)
performance parameter
Working pressure range: 0.02 MPa to 1 MPa (2 bar to 10 bar)
Theoretical force (at 6 bar):
Forward travel: approximately 7363 N
Return journey: approximately 6881 N
Working temperature range:- 20 ° C to+80 ° C
Corrosion resistance level: CRC 2 (moderate corrosion resistance)
Material and Protection
Piston rod material: high alloy steel, hard chrome plated treatment
Sealing material: TPE-U (polyurethane elastomer)
Cylinder material: refined aluminum alloy, smooth anodized treatment
Protection level: IP65 (dustproof and waterproof)
Interface and attachments
Gas source interface: G1/2 (specific specifications need to refer to the product manual)
Attachment support: Can be paired with joint bearings, double earrings, self centering connectors, etc
Certification and Standards
Compliant with ISO 15552 and VDMA 24562 standards
CE certification, compliant with RoHS directive
Optional ATEX explosion-proof certification (gas II 2G, dust II 2D)
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
