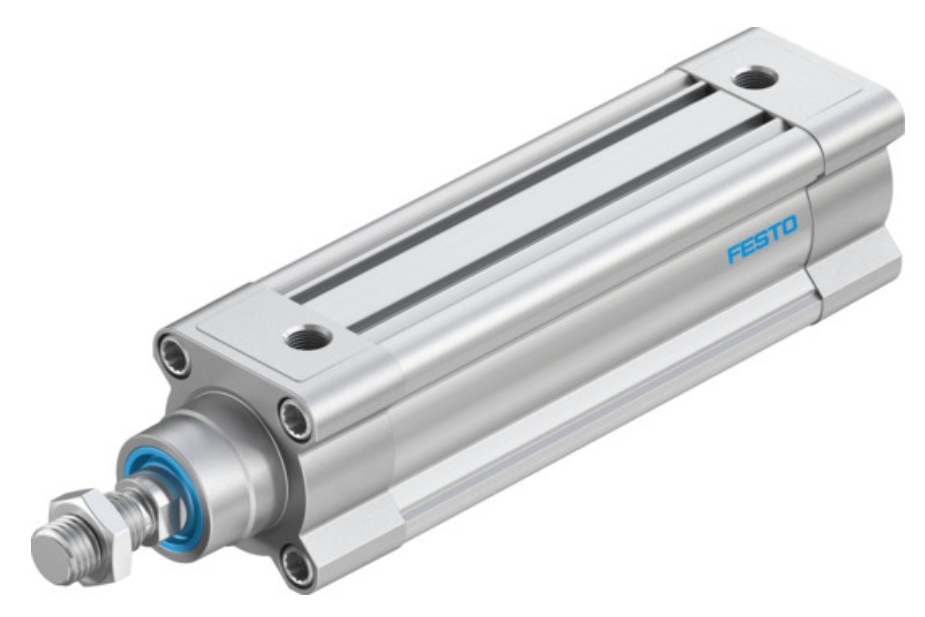

Festo DSBC-50-125-PPVA-N3 ISO cylinder
Description
Festo DSBC series pneumatic cylinders with adjustable pneumatic cushioning at both ends of the actuator barrel. Featuring a high-alloy steel piston rod provides excellent running performance, low overall weight and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.
The DSBC PPV type adjustable cushioning pneumatic cylinders are equipped with a special cushioning piston as an extension to the main piston. This pneumatic cushioning builds up an air cushion to absorb energy in the end positions, building up and exhausting air in a targeted fashion.. This energy absorbing method makes these cylinders ideal for medium to heavy loads and high speed applications.
Information
Corresponds to ISO 15552 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Adjustable end cushioning helping to reduce noise and vibration
High-alloy steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications
Double acting operation
Technical Data
Stroke：125 mm
Piston diameter：50 mm
Cushioning：Pneumatic cushioning, adjustable at both ends
Mounting position：optional
Design：Piston Piston rod Profile barrel
Position detection：Via proximity switch
Symbol：00991235
Variants：Piston rod at one end
Operating pressure：0.04 MPa ... 1.2 MPa
Operating pressure：0.4 bar ... 12 bar
Mode of operation：Double-acting
Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC：2 - Moderate corrosion stress
LABS (PWIS) conformity：VDMA24364-B1/B2-L
Ambient temperature：-20 °C ... 80 °C
Impact energy in end positions：1 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke：990 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke：1178 N
Moving mass for 0 mm stroke：365 g
Additional moving mass per 10 mm stroke：25 g
Basic weight for 0 mm stroke：1190 g
Additional weight per 10 mm stroke：56 g
Type of mounting：Either:With through-hole With accessories
Pneumatic connection：G1/4
Material collar screws：High-alloy stainless steel
Material cover：Wrought aluminium alloy
Material cylinder barrel：Wrought aluminium alloy
Material piston rod wiper：TPE-U(PU)
Buffer seal material：TPE-U(PU)
Cushioning boss material：POM
Material cylinder barrel：Smooth-anodised wrought aluminium alloy
Material nut：Galvanised steel
Material bearing：POM
Material collar screws：Galvanised steel
