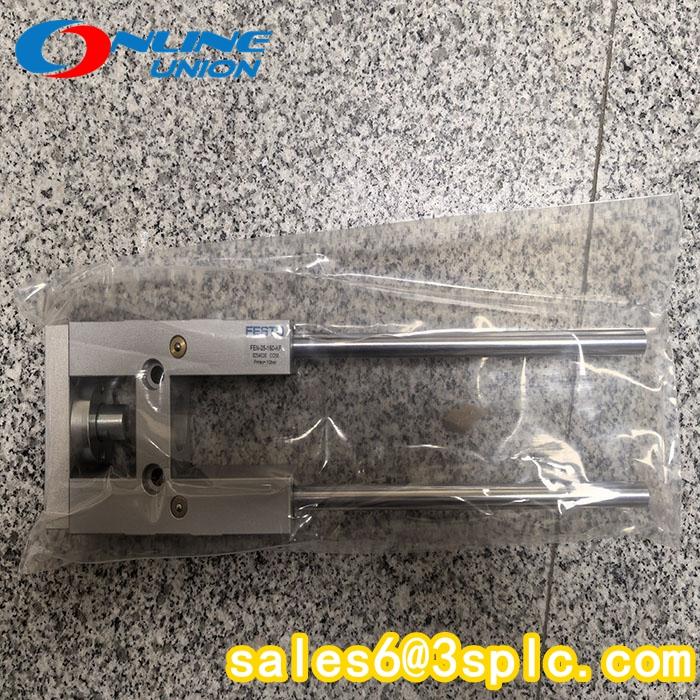

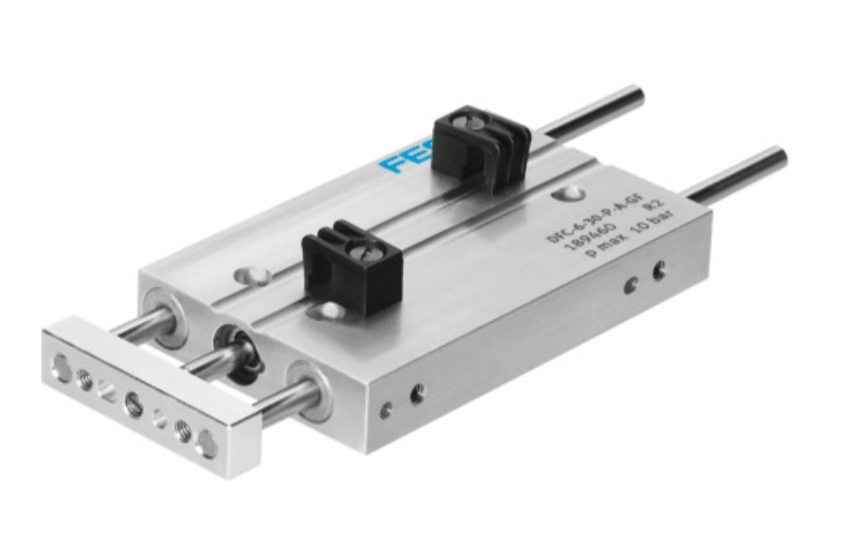

Festo DFC-10-15-P-A-KF 189475 Mini guided actuator Brand new

Festo DFC-10-15-P-A-KF  189475 Mini guided actuator

Description

Discover all the available configurations for the FESTO DFC product series Mini guided drive, double-acting. Find the right product by filtering with Piston diameter [mm], Stroke [mm], Position sensing and Guide.

Information

Brand：Festo

Stroke：15mm

Bore：10mm

Manufacturer Series：DFC

Action：Double

Bearing Type：Ball Bearing

Model Number p：189475

Country of Origin：Germany

Technical Data

Distance of centre of gravity of payload to yoke plate xs：15 mm

Stroke：15 mm

Piston diameter：10 mm

Drive unit operating mode：Yoke

Cushioning：Elastic cushioning rings/pads at both ends

Mounting position：Any

Guide：Recirculating ball bearing guide

Structural design：Guide

Position sensing：For proximity sensor

Symbol：00991737

Operating pressure：0.1 MPa ... 1 MPa

Operating pressure：1 bar ... 10 bar

Max. speed：1 m/s

Mode of operation：Double-acting

Operating medium：Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media：Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)：0 - No corrosion stress

LABS (PWIS) conformity：VDMA24364-B2-L

Ambient temperature：-5 °C ... 60 °C

Impact energy in the end positions：0.05 J

Max. torque Mx：0.3 Nm

Max. payload as a function of the stroke at defined distance xs：9.8 N

Theoretical force at 6 bar, retracting：35 N

Theoretical force at 6 bar, advancing：47 N

Moving mass：27.2 g

Moving mass at 0 mm stroke：27.2 g

Additional moving mass per 10 mm stroke：7.2 g

Product weight：108 g

Pneumatic connection：M5

Cover material：Wrought aluminum alloy

Seals material：NBR

Housing material：Wrought aluminum alloy

Piston rod material：High-alloy stainless steel
