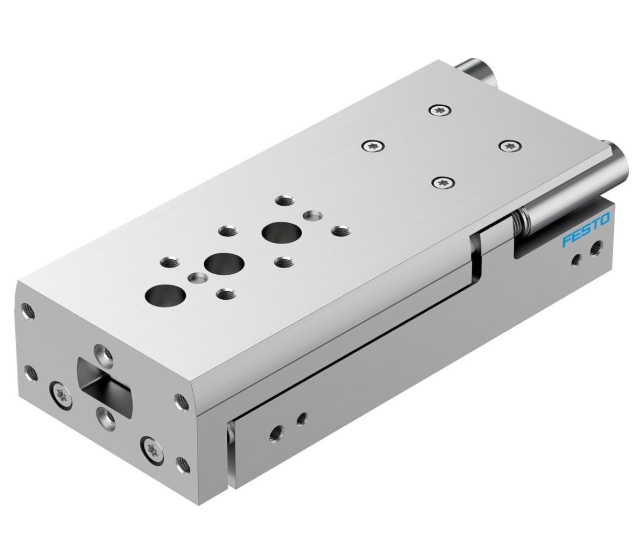

Festo DGST-10-100-EA Mini slides DGST
Information
Manufacturer Nr.：DGST-10-100-PA
Manufacturer：Festo
Weight：0.600000
HS-Code：84123100
GPSR manufacturer information：Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Technical Data
Stroke [mm]：100
Piston diameter：10 mm
Operating mode actuator unit：Joch
Dampening：P: Elastic silencer rings / plates double-sided
installation position：arbitrary
Guide：ball guide
Construction set up：Doppelkolben
Construction set up：Joch
Construction set up：Kolbenstange
Construction set up：Schlitten
Position detection：For proximity switch
Operating pressure [bar]：1 to 8
Max. speed [m/s]：0,8
Repeatability：<= 0,3 mm
Principle of operation：double acting
Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium：Oiled operation possible (required in further operations)
Corrosion resistant class KBK：1 - low corrosion stress
ambient temperature [°C]：-10 to 60
Impact energy at the end positions [J]：0,080
Dampening length [mm]：1,5
Max. force Fy [N]：530
Max. force Fz [N]：530
Max. torque Mx [Nm]：6,0
Max. torque My [Nm]：6,0
Max. torque Mz [Nm]：6,0
Theoretical force at 6 bar, Return flow [N]：79
Theoretical force at 6 bar, flow [N]：94
Moving mass [g]：280,7
Product weight [g]：584,4
Fastening type：With throughway
Pneumatic connection：M5
Material information：Copper and PTFE-free
Material information：RoHs compliant
Cover material：Aluminium wrought alloy
Seals material：HNBR
Werkstoff Führung：POM
Werkstoff Führung：TPE-E
Werkstoff Führung：hochlegierter Stahl
Housing material：Aluminium wrought alloy
Piston rod material：High-alloyed stainless steels
Alignable end position range / Length front [mm]：15,6
Alignable end position range / Length rear [mm]：15,8
