EMERSON CDAQ-9178 New and Original High quality

EMERSON CDAQ-9178 module

Item no.:
CDAQ-9178
Payment:
T/T
Market price:
$66
Price:
$99
Product origin:
US
Color:
New sealed
Lead Time:
In stock/1-3days

Inquiry now

product introduction

CDAQ-9178

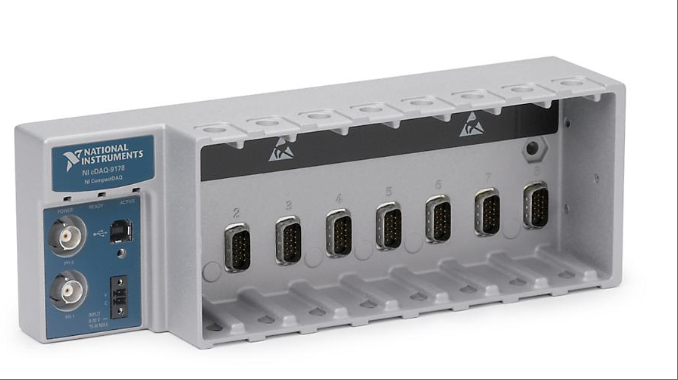

The CDAQ-9178 model is an 8-slot USB compact data acquisition chassis designed specifically for small and portable sensor measurement systems. This chassis achieves plug and play functionality through a USB interface, making it easy to connect to PCs, laptops, or netbooks without the need for additional power adapters, greatly simplifying the device deployment process. Its core advantage lies in supporting mixed configuration of multiple types of C-series I/O modules. Users can flexibly combine analog I/O, digital I/O, and counter/timer modules according to testing requirements to achieve synchronous acquisition and processing of complex signals. The chassis is equipped with four 32-bit universal counters/timers, which can share clock and trigger signals with dual BNC connectors to meet high-precision timing and synchronization requirements. Its compact design balances portability and industrial grade reliability, and can adapt to various environments such as laboratories, production lines, and mobile testing platforms. Through modular expansion capabilities, it provides users with flexible and efficient data acquisition solutions, especially suitable for industrial automation and testing scenarios that require multi-channel and high synchronization measurements.

Technical specifcations for CDAQ-9178

Interface and power supply:

Bus connector: adopting USB 2.0 interface, supporting plug and play function, no additional power adapter is required to power through USB, simplifying the device deployment process.

Input voltage range: 9V to 30V, maximum input power of 15W, compatible with multiple power supply environments.

Slot and module compatibility:

Number of slots: Equipped with 8 slots, it supports flexible configuration of C-series I/O modules and can mix analog I/O, digital I/O, and counter/timer modules to meet complex testing requirements.

Counter/Timer Function:

Built in counter: integrates 4 32-bit universal counters/timers, supports orthogonal encoders PWM、 Event counting, pulse sequence generation, and period/frequency measurement.

BNC interface: Access the counter through two built-in BNC connectors to achieve clock and trigger signal sharing and improve synchronization accuracy.

Timing and synchronization capability:

Multi rate support: capable of executing 7 hardware timing operations simultaneously, supporting 3 independent analog input rates, suitable for multitasking parallel processing scenarios.

External Trigger: Equipped with an external BNC trigger interface, it can synchronize with external devices without the need for digital module wiring, simplifying system integration.

Mechanical and protective performance:

Size: 254mm (length) x 88.13mm (width) x 33.27mm (height) in unloaded state, compact design saves space.

Protection level: up to IP30 standard, with dust-proof ability, suitable for industrial site environment.

Environmental adaptability: The working temperature range is -20 ° C to 55 ° C, and it can withstand 30g impact and 3g vibration, meeting the requirements of harsh working conditions.

Safety and Compliance:

Safety standards: Compliant with IEC 61010-1, EN 61010-1, UL 61010-1, CSA 61010-1 certifications to ensure electrical safety.

Environmental compliance: Meet RoHS directive and phthalate restriction requirements, ensuring user health and environmental protection.

Software and Development Support:

Drivers and Tools: Equipped with NI DAQmx drivers as standard, compatible with LabVIEW SignalExpress LE, LabVIEW, LabWindows/CVI, and Measurement Studio, providing DAQ assistant code generation functionality.

Configuration tool: Integrated NI Measurement&Automation Explorer (MAX), supporting device configuration, testing, and sample program calling.
