CDAQ-9174

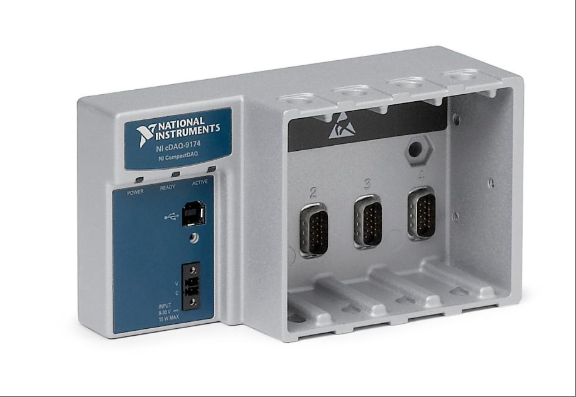

The CDAQ-9174 model product is a CompactDAQ USB chassis designed specifically for small portable sensor measurement systems. Its core function is to achieve fast connection between sensors and electrical measurement equipment through a plug and play USB interface, and support timing, synchronization, and data transmission between C-series I/O modules and external hosts. This chassis supports a mixed configuration of multiple types of C-series I/O modules, which can synchronously complete the acquisition of analog I/O, digital I/O, and counter/timer signals. It is equipped with four 32-bit general-purpose counters/timers, and with multi timing engine technology, can simultaneously perform seven hardware timing operations and support three different rates of analog inputs, meeting the requirements of complex testing scenarios. Its compact design balances portability and industrial grade reliability, making it suitable for scenarios such as laboratories, production lines, and mobile testing platforms. Through modular expansion capabilities, it provides users with flexible and efficient data acquisition solutions.
Technical specifcations for CDAQ-9174
Interface and Power Supply: Using a USB 2.0 bus connector, it supports plug and play functionality and can be easily connected to PCs, laptops, or netbooks through a single USB cable, without the need for an additional power adapter to complete power supply.
Slot configuration: The chassis is equipped with 4 slots, compatible with various C-series I/O modules, and supports users to flexibly configure analog I/O, digital I/O, and counter/timer modules according to testing needs, achieving mixed measurement functions.
Counter/Timer: Built in 4 32-bit universal counters/timers, accessible through hardware timed digital C-series modules (such as NI 9401 or NI 9402), supporting orthogonal encoders PWM、 Application scenarios such as event counting, pulse sequence generation, and period or frequency measurement.
Timing engine and multi rate support: Equipped with multiple timing engines, it can simultaneously perform 7 hardware timing operations and support 3 independent analog input rates, meeting the needs of multitasking parallel processing in complex testing scenarios.
Working temperature range: It can operate stably at ambient temperatures ranging from -20 ° C to 55 ° C, and is suitable for various environmental conditions such as industrial sites and laboratories.
Software support: NI DAQmx driver software is randomly included, including LabVIEW SignalExpress LE (suitable for simple data recording applications), API interfaces for LabVIEW, ANSI C/C++, C #, Visual Basic. NET, and DAQ assistant code generation function for NI LabVIEW, LabWindows/CVI, and Measurement Studio. In addition, configuration and testing tools NI Measurement&Automation Explorer (MAX) and multiple language sample programs are also provided.
