Allen Bradley 5069-L330ER CompactLogix 3MB Enet Controller Brand new

Allen Bradley 5069-L330ER CompactLogix 3MB Enet Controller

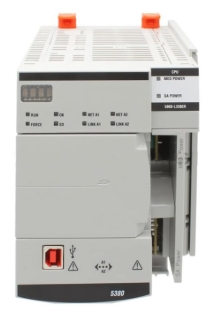

The Allen-Bradley 5069-L330ER is a 5380 CompactLogix controller. This controller is a compact and highly scalable Programmable Automation Controller (PAC) that supports the modern compact 5000 I/O as local and remote I/O modules as well as other distributed I/O platforms of Allen-Bradley.

Technical specifications for 5069-L330ER

Programming Languages：Sequential Function Chart, Function Block Diagram, Structured Text, and Ladder Diagram

Communication Ports：1 Type B 2.0 Full-Speed USB and 2 Ethernet/IP Ports

Supported Ethernet/IP Network Topologies：Device Level Ring, Star, and Linear

Application Memory：3 Megabytes

Module Type：CompactLogix Controller

Part Number/Catalog No.：5069-L330ER

Brand：Allen-Bradley

Manufacturer：Rockwell Automation

Dimensions：5.4 x 0.9 x 4.2 in (138 x 22 x 105 mm)

Weight：0.39 lbs (175 g)

Non-volatile memory：2 GB via 1784-SD2 (ships with the controller)

Local I/O modules：31 I/O modules

Communication rate, Ethernet：10 Mbps / 100 Mbps / 1 Gbps

No. of Ethernet nodes：60

No. of supported sockets：32

Communication rate, USB：12 Mbps

Ethernet/IP Nodes：50 Ethernet/IP Nodes

I/O Expansion：31 I/O

Motion Axes：0 Motion Axes

Pulse Latching Supported：Yes

Pattern Matching Supported：Yes

Description:

The 5069-L330ER mainly features Dual Ethernet I/P interface wherein up to 60 Ethernet nodes and 32 socket connections may be communicated with at speeds of 10 / 100 Mbps (Fast Ethernet) and 1 Gbps transfer rate and supporting linear, star and Device Level Ring (DLR) topologies. This controller also has a 3 MB user memory and a pre-installed Secure Digital (SD) card with memory amounting 2 GB (1784-SD2). The 5069-L330ER is capable of handling up to 32 programs tasks wherein each task can have up to 1000 programs. In addition, this controller also features One (1) USB port that communicates at a transfer speed of 12 Mbps.

The 5069-L330ER has an I/O capacity of 128,000 packets/second and Message Rate Capacity of 2000 messages/second.

This controller has SA and MOD power sections. These sections are specifically intended for termination of Module power and Field side power. To terminate signal wires to these areas, appropriate terminal block kit must be used such as 5069-RTB64-SCREW and 5069-RTB64-SPRING. Appropriate wire strip length are 12 mm (0.47 in.) for screw terminals and 10 mm (0.39 in.) for spring terminals.

The operating temperature of this module is 32 to 140 °F. The storage temperature of this module is -40 to 185 °F. The maximum surrounding air temperature of this module is 60 °C. Maintain a relative humidity range of 5% to 95%, non-condensing and store the module in a place that is not exposed to a corrosive atmosphere and save it in a non-construction area. This module is equipped with a built-in USB port and 2 ethernet ports. The EtherNet/IP network topologies that are supported are DLR, Star, and Linear. The maximum number of EtherNet/IP nodes in this module is 60. The capacity of this module is 3 MB and it measures 5.67 x 3.86 x 5.39 in. The weight of this module is around 1.693 lb.
