Allen Bradley 5069-ARM Compact 5000 I/O Address Reserve Module Brand new

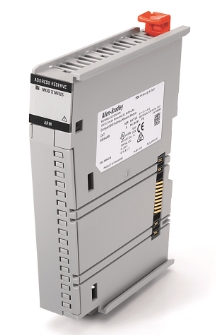

Allen Bradley 5069-ARM Compact 5000 I/O Address Reserve Module

The Allen-Bradley 5069-ARM is a Compact 5000 I/O Address reserve Module (ARM). This module is used to reserve a particular node address for later insertion of a specific module in the future. This module. This module has a MOD power rating of 45 mA @ 18-32V DC; MOD passthrough of 9.55 A @ 18-32V DC and SA Passthrough of 9.95 A @ 0-32V DC, 9.975 A @ 0-240V AC, 47…63 Hz ATEX/IECEX, 125V AC, max.

Technical specifications for 5069-ARM

Dimensions：Height of 144.57 mm (5.69 in.); Width of 25.56 mm (1.01 in.) and Depth of 105.42 mm (4.15 in.)

Enclosure Type：None (Open Style)

Module Type：Address Reserve Module

Brand：Allen-Bradley

Part Number/Catalog No.：5069-ARM

Manufacturer：Rockwell Automation

MOD Power：45 mA @ 18…32V DC

MOD Power (Passthrough)：9.55 A @ 18…32V DC

SA Power (Passthrough)：9.95 A @ 0…32V DC 9.975 A @ 0…240V AC, 47…63 H ATEX/IECEX, 125V AC, max

Operating Temperature：0…60 °C (32…140 °F)

Maximum surrounding air temperature：60 °C (140 °F)

Installation：DIN Rail

Compatible DIN Rail：EN50022 - 35 x 7.5 mm (1.38 x 0.30 in.)

Slot Width：Single Slot

Number of Inputs：N/A

Number of Outputs：N/A

Voltage Category：N/A

Input Voltage Range：N/A

Output Voltage Range：N/A

Power Dissipation：1.0 Watts

Weight：0.39 lbs (175 g)

Description:

The Allen-Bradley 5069-ARM is a Compact 5000 I/O module. This module specifically functions as an Address Reserve Modul (ARM). This module is used to reserve a specific slot or node address for later insertion and utilization of a specific module. This provides the advantage of avoiding re-configuration of the controller assembly, forcing a running system to stop due to downloading of a new configuration. With this module, simplified re-configuration is needed once the address is reserved by the ARM module.

The 5069-ARM has MOD power of 45 mA @ 18-32V DC; MOD Power Passthrough of 9.55 A @ 18-32V DC and SA Power Passthrough ratings of 9.95 A @ 0-32V DC; 9.975 A @ 0-240V AC, 47-63 Hz ATEX/IECEX, 125V AC, max. This module does not use SA power, only passthrough power. Similar to other Compact 5000 I/O modules, the 5069 ARM has an open type enclosure.

The 5069-ARM cannot be used without the Compact 5000 Ethernet I/P adapter and CompactLogix 5380 controller. Typically, this module is not installed on the right side of an adapter or controller. It is commonly installed beside any Compact 5000 I/O module.

The 5069-ARM main parts include a DIN Rail latch used to mount and lock the module to the DIN rail; Top and bottom interlocking piece that is used to align the controller appropriately and module status indicator located on the upper left side of the module.

The 5069-ARM has a Height of 144.57 mm (5.69 in.); Width of 25.56 mm (1.01 in.) and Depth of 105.42 mm (4.15 in.).

The 5069-ARM has passed the EN 50081-2 EMC - Generic Emission Standard, Part 2 - Industrial Environment regulations. The 5069-ARM has an operating shock of 30 g (3 pulses, 11 ms). The non-operating shock of the 5069-ARM is 50g (3 pulses, 11 ms) and the vibration is 4.6 g at 10-500 Hz. The Module Power (MOD Power) bus voltage ranges from 18-32V DC. The maximum Module Power (MOD Power) bus current is 45 mA. The Module Power (MOD Power) Passthrough bus voltage is 18-32V DC. The maximum Module Power (MOD Power) bus current rating is 9.55 A. The Sensor Actuator Power (SA Power) Passthrough bus voltage is ranged from 0-32V DC and 0-240V AC that operates at a frequency of 47-63 Hz. This module comes with 1 green/red module status indicator. Do not remove or replace modules when power is applied.
