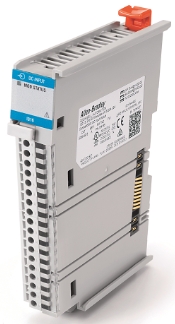

Allen Bradley 5069-IB16 Compact 5000 DC Input Module

The Allen-Bradley 5069-IB16 is a Compact 5000 Discrete input module. This is an DC input module which features Sixteen (16) sinking input channels, accepting signal voltage range of 10-32VDC in single group of input channels. It has an input current range of 4-7.4 mA per channel @ 10-32VDC. This module requires an RTB to terminate signals where compatible RTBs include 5069-RTB18-SPRING RTB and 5069-RTB18-SCREW RTB.

Technical specifications for 5069-IB16

Module Type：Digital DC Input Module

Part Number/Catalog No.：5069-IB16

Brand：Allen-Bradley

Manufacturer：Rockwell Automation

Series：Compact 5000 I/O

No. of Inputs：Sixteen (16) Inputs

Input Voltage：12/24 VDC

Operating Voltage Range：10-32VDC

Module Keying：Electronic

Input Delay Time, OFF to ON：50 µs + filter time

Power Dissipation (Max)：3.9 W

MOD Power：75 mA @ 18…32V DC

MOD Power passthrough, max：9.55 A @ 18…32V DC

SA Power：200 mA @ 79…264V AC

SA Power Passthrough, max：9.95 A @ 79…264V AC

Thermal Dissipation：13.3 BTU/hr

Removable Terminal Block(s)：5069-RTB18-SPRING RTB; 5069-RTB18-SCREW RTB

Number of Inputs：1 Group of 16 Channels (Sinking)

Number of Outputs：N/A

Voltage Category：12/24 Volts DC Sink

Input Voltage Range：10-32 Volts DC

Output Voltage Range：N/A

Power Dissipation：3.9 Watts

Enclosure Type：None (Open Style)

Dimensions：5.4 x 0.87 x 4.2 in (138 x 22 x 105 mm)

Weight： 0.39 lbs (175 g)

Description:

The 5069-IB16 is a discrete input module from Allen-Bradley. This module is part of the Compact 5000 I/O family. This module operates at a voltage range of 10-32VDC and provides Sixteen (16) sinking input channels, allowing signaling devices to be integrated to a Programmable Automation Controller (PAC).

The 5069-IB16 supports functioning as local I/O module of a CompactLogix controller or as a Distributed I/O component, installed with a Compact 5000 Ethernet I/P communication adapter. Regardless of the module’s use, an input channel of this module activates at a minimum Voltage supply of 10VDC and maximum of 32VDC with nominal rated value of 24VDC. Similarly, minimum On-State current is 4 mA @ 10V and maximum On-state current of 7.4 mA @ 32VDC while the nominal input current is 6 mA @ 24VDC.

This module DIN rail mounted. Similar to any other modules of this series, it is provided with a DIN rail latch as well as top and bottom interlocking piece to ensure proper alignment of the to adjacent modules. This module is used with a removable terminal block (RTB) for wiring of input signals. Compatible RTB for this module includes 5069-RTB18-SPRING RTB and 5069-RTB18-SCREW RTB. When making signal connections, appropriate wire size is 0.5-1.5 mm2 (22-16 AWG) solid or stranded shielded copper wire with insulation rating of 105 °C (221 °F), or higher and maximum diameter including insulation of 2.9 mm (0.11 in.). Only One (1) wire is recommended per terminal when using a spring type RTB. Similarly, when screw type RTB is used, recommended wire size is 0.5-1.5 mm2 (22…16 AWG) solid or stranded shielded copper wire with insulation rating of 105 °C (221 °F), or higher and maximum diameter of 3.5 mm (0.14 in.) including insulation.

The input voltage of this module is ranged from 10-32V DC. The maximum inrush current (MOD power) of this module is 75 mA. The passthrough voltage (MOD power) of this module is from 18-32V DC. The maximum power dissipation of this module is 3.9 W. The maximum thermal dissipation of this module is 13.3 BTU/hr. The Allen-Bradley 5069-IB16 is supplied as open-type equipment. The 5069-IB16 is intended for use in industrial environments. This module is used in a pollution 2 environment (as defined in EN/ IEC0664-1) when applied in a Zone 2 environment. The enclosure should be accessible only by means of an appliance. Please use a separate external power supply for MOD power and SA power. This can prevent undesirable consequences that can occur if you use only one.
