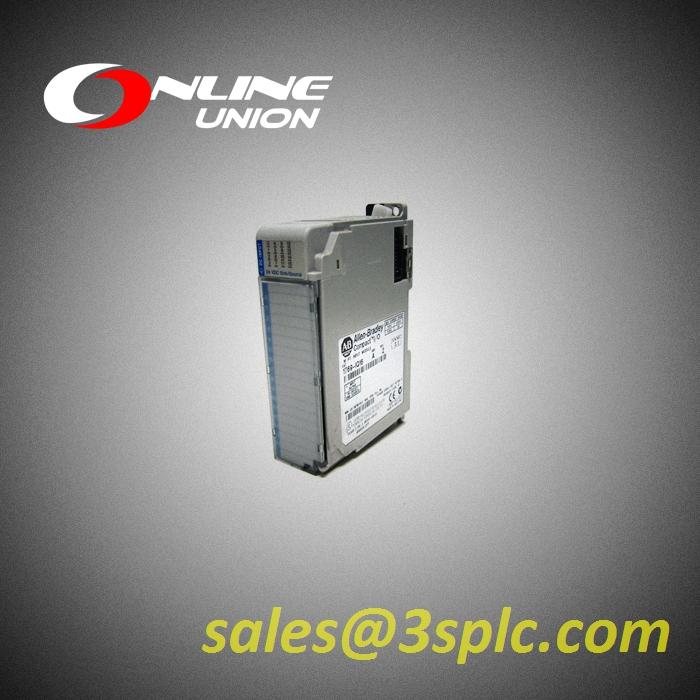

Allen Bradley 5069-OB16 Compact 5000 Digital 16-point Sourcing Output Modules Brand new

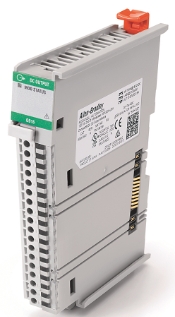

Allen Bradley 5069-OB16 Compact 5000 Digital 16-point Sourcing Output Modules

The Allen-Bradley 5069-OB16 is a Compact 5000 Discrete output module. This module features Sixteen (16) single group sourcing output channels that operates at voltage range of 10-32VDC. It provides output current of 0.5 A resistive per channel @ 10…32V DC and 8 A resistive per module @ 10…32V DC, max. This module may be used as Local I/O or distributed I/O component. It uses 5069-RTB18-SPRING RTB and 5069-RTB18-SCREW RTB.

Technical specifications for 5069-OB16

Module Type：DC Output module

Part Number/Catalog No.：5069-OB16

Brand：Allen-Bradley

Manufacturer：Rockwell Automation

Series：Compact 5000 I/O

No. of Outputs：Sixteen (16) DC output channels

Output Voltage signal, nominal：24VDC

Output Voltage Signal range：10-32VDC

Output current rating：0.5 A resistive per channel @ 10…32V DC 8 A resistive per module @ 10…32V DC, max

Surge Current per point：1 A max for 10 ms per point, repeatable every 2 s

Output delay time：? 100 µs, ±10 µs @ 25 °C (77 °F) @ 0.5 A

Pulse width, min：200 µs @ 0.5 A @ 25 °C (77 °F)

No. of output groups：One (1)

Removable Terminal Block：5069-RTB18-SPRING RTB; 5069-RTB18-SCREW RTB

Output states (Fault mode, fault state Program mode)：Hold Last State; On; Off (default)

Duration of fault mode per point：1 s, 2 s, 5 s, 10 s, Forever (default)

Number of Inputs：N/A

Number of Outputs：1 Group of 16 Channels (Sourcing)

Voltage Category：12/24 Volts DC Source

Input Voltage Range：N/A

Output Voltage Range：10-32 Volts DC

Power Dissipation：3.25 Watts

Enclosure Type：None (Open Style)

Dimensions：5.4 x 0.87 x 4.2 in (138 x 22 x 105 mm)

Weight：0.39 lbs (175 g)

Pulse Latching Supported：Yes

Pattern Matching Supported：Yes

Description:

The Allen-Bradley 5069-OB16 is a Discrete output module that belongs to the Compact 5000 I/O product family. It provides an output voltage range of 10-32VDC with nominal output of 24VDC. It has an output current rating of 0.5 A resistive per channel @ 10…32V DC and 8 A resistive per module @ 10…32V DC, max. Each channel is able to withstand maximum surge current of 1 A for 10 ms per point that is repeatable for every 2s.

Similar to other output modules, this module is mainly used to energize and actuate electrical loads. However, the 5069-OB16 is compatible with devices that operates at voltage category of 12/24VDC. This module has a minimum On-state voltage of 10VDC and maximum of 32VDC with minimum On-state current of 1 mA per channel. Each channel has an output delay time of ? 100 µs, ±10 µs @ 25 °C (77 °F) @ 0.5 A for On to Off and Off to On transitions. The module’s output has a minimum pulse width of 200 µs @ 0.5 A @ 25 °C (77 °F).

The 5069-OB16 internally features Filed Power Loss detection, No Load detection for each channel and individual Output short circuit, Output overload and overtemperature detection per channel. It is also equipped with Reverse polarity detection and Overvoltage detection with rating of 36VDC. This module has internal fuse protection.

The 5069-OB16 outputs can be controlled even if the controller or module has entered Fault mode, Program mode and fault state. Configurable states include Hold Last State, On and Off which is the default setting.
