SIEMENS 6ES7507-0RA00-0AB0 New and Original High quality

6ES7507-0RA00-0AB0

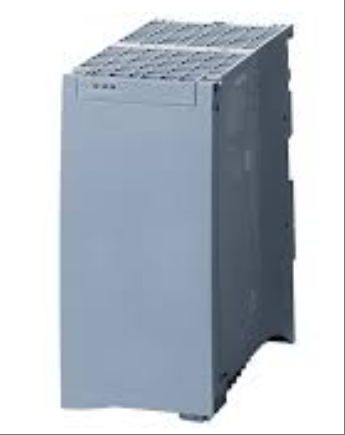

The 6ES7507-0RA00-0AB0 model product is a power module for Siemens S7-1500 series PLC, designed specifically for industrial automation applications, with stable and efficient power supply capabilities. This module adopts a compact modular design, supports a wide range of input voltages of 120/230V AC/DC, can output stable 24V DC voltage, and has a rated output current of 6A, meeting the power requirements of devices such as CPU and I/O modules in the S7-1500 system. Its high-strength plastic shell has excellent protective performance, which can effectively resist mechanical collisions, vibrations, and dust and moisture intrusion, and adapt to harsh industrial environments. The front of the module is equipped with clear indicator lights, which display real-time power status and fault alarm information, facilitating quick diagnosis and maintenance; Equipped with standardized power input and output terminals on the side, it supports convenient electrical connections with external power sources and other modules. This power module has overvoltage, overcurrent, and short-circuit protection functions, with high output voltage accuracy and small fluctuation range, ensuring stable system operation; By linking with the diagnostic function of the PLC system, real-time monitoring of the working status and recording of fault information can be achieved, providing a basis for subsequent maintenance. Its efficient power conversion technology can reduce energy loss, meet energy-saving and emission reduction requirements, and is widely used in industrial fields such as automobile manufacturing, electronic equipment production, chemical industry, petroleum, power, logistics and warehousing. It provides reliable power support for automated production lines, process control systems, and logistics equipment, and is a key component to ensure stable operation of industrial production.

Technical specifcations for 6ES7507-0RA00-0AB0

Basic information

Brand and series: System power module for Siemens S7-1500 series PLC.

Model and identification: 6ES7507-0RA00-0AB0, product type marked as PS 60W 120/230V AC/DC, hardware functional status FS03, firmware version V2.8.

2、 Electrical parameters

Input voltage: Supports wide range AC input, rated input voltage is 120/230V AC, frequency is 50/60Hz, and some information mentions supporting DC 12-48V input (specific subject to official documentation), enhancing its applicability and versatility.

Output voltage: outputting a stable 24V DC voltage to meet the power requirements of multiple modules working simultaneously in the S7-1500 system.

Rated output current: 6A, capable of meeting the power requirements of multiple modules within the system.

Power: The rated power is 60W, the feeding power on the backplane bus is 10W, the power consumption from the backplane bus (reaching equilibrium) is 5.5W, and the typical power loss is 5.7W.

3、 Environmental parameters

Working temperature range: 0 ° C to 60 ° C, suitable for complex temperature environments in industrial sites.

Protection level: It has the ability to prevent dust and moisture, and meets industrial level protection standards.

Environmental humidity: Applicable to standard industrial control environment humidity, some information mentions that the suitable environmental humidity is -30% (depending on the specific environment).

4、 Functional characteristics

Interface and installation: Using standard interfaces, supporting PROFINET IO communication; Modular design, supporting DIN rail installation for easy on-site installation and maintenance.

Signal processing and protection: Supports I&M data (I&M0 to I&M3), with clock synchronization modes (distributed and centralized); Built in overvoltage, overcurrent, and short-circuit protection functions, with a power outage/disconnection time of 5ms (some information mentions 20ms, subject to actual product), ensuring stable system operation.

Compatibility and Scalability: Highly compatible with S7-1500 series PLC, supporting programming and configuration through STEP 7 TIA Portal; Modular design facilitates system expansion and can adapt to various industrial automation scenarios.

5、 Physical parameters

Size and weight: The product size is 15.6cm × 15.9cm × 8.0cm (some information mentions 215mm × 115mm × 50mm, please refer to the actual product), with a net weight of approximately 0.607kg (some information mentions 1.072kg, which may be due to packaging differences).

Packaging and Storage: The packaging size is 15.60x15.90x11.80cm, supporting storage and transportation in standard industrial control environments.
