SIEMENS 6ES7234-4HE30-0XB0 New and Original High quality

6ES7234-4HE30-0XB0

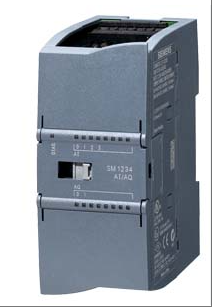

The 6ES7234-4HE30-0XB0 model product is an analog input/output expansion module (SM 1234) for Siemens SIMATIC S7-1200 series PLC. It adopts a compact modular design and has 4 channels of analog input (supporting ± 10V voltage or 0/4-20mA current signal, 14 bit resolution) and 2 channels of analog output (supporting ± 10V voltage or 0-20mA current signal, 12 bit resolution). It can real-time collect industrial process parameters such as temperature and pressure and output control signals. This module is compatible with the entire range of S7-1200 CPUs and enables high-speed data exchange through a backplane bus. It supports a wide temperature range (-20 ° C to+60 ° C) and industrial grade electromagnetic compatibility, making it suitable for automation scenarios such as process control and mechanical manufacturing. Its high-precision signal processing capability and flexible scalability can meet the needs of small and medium-sized control systems for analog signal acquisition and output, significantly improving the monitoring accuracy and equipment response speed of the production process.

Technical specifcations for 6ES7234-4HE30-0XB0

Basic information

Brand and series: Analog input/output expansion module for Siemens SIMATIC S7-1200 series PLC.

Module Type: Analog Input/Output Expansion Module (SM 1234).

Purpose: Used for the acquisition and output of analog signals in industrial automation control systems. It can be connected to temperature sensors, pressure transmitters, and other devices to achieve real-time monitoring and control of process parameters.

2、 Electrical parameters

Input channel (AI): 4 analog inputs.

Supported input signal types: Voltage input is ± 10V; Current input is 0 (4) -20mA.

Resolution: The resolution of the voltage/current input is 14 bits (including the sign bit).

Output channel (AO): 2-channel analog output.

Supported output signal types: voltage output is ± 10V; current output is 0 (4) -20mA.

Resolution: The voltage/current output has a resolution of 12 bits (including the sign bit).

Interface type: Adopting standard terminal wiring method for easy on-site wiring and maintenance.

Installation method: Supports DIN rail installation and meets the standardized installation requirements of industrial equipment.

3、 Environmental parameters

Working temperature range: -20 ° C to+60 ° C, suitable for complex temperature environments in industrial sites.

Protection level: The module design meets industrial grade protection standards and has the ability to prevent dust and moisture.

4、 Functional characteristics

Signal processing capability:

The corresponding data words for the full-scale range of voltage input are -27648 to 27648.

The corresponding data words for the full-scale range of current input are -27648 to 27648.

The corresponding data words for the full-scale range of voltage output are -27648 to 27648.

The corresponding data words for the full range range of current output are -27648 to 27648.

Noise suppression: Provides four noise suppression frequency options: 400Hz, 60Hz, 50Hz, and 10Hz.

Input impedance: Voltage input impedance ≥ 9M Ω, current input impedance 250 Ω.

Signal smoothing: Supports four levels of smoothing processing: none, weak, medium, and strong.

Overshoot/Downstroke Range: The voltage signal overshoot/downstroke range is 32511 to -27649/-27649 to -32512.

Overflow/underflow range: The voltage signal overflow/underflow range is 32767 to 32512/-32513 to -32768.

Maximum withstand voltage/current: ± 35V (voltage)/± 40mA (current).

5、 Physical parameters

Module size: 45mm (width) x 100mm (height) x 75mm (depth).

Weight: Approximately 220g.

Power consumption: 2.0W (typical value).

Current consumption:

SM bus current consumption: 80mA.

24V DC power supply current consumption (no load): 60mA.
