SIEMENS 6ES7408-1TA01-0XA0 New and Original High quality

6ES7408-1TA01-0XA0

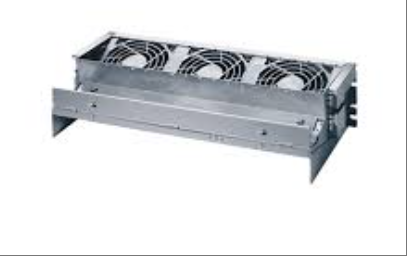

The 6ES7408-1TA01-0XA0 model product is a cooling fan component designed for the Siemens SIMATIC S7-400 series PLC, specifically for high heat industrial control scenarios. It adopts a compact modular structure, integrates three fan units and an electronic monitoring module, and is powered by 24V DC or 120/230V AC wide voltage, which can adapt to different industrial power environments. The bottom plate is equipped with cable trays to achieve line shielding and centralized wiring. It supports tool free maintenance from the front, making it easy to quickly replace fans, air filters, and electronic templates. At the same time, the lockable front panel ensures equipment safety. When the demand for template heat dissipation in the rack increases dramatically, this component can automatically start redundant fans to ensure that the remaining two can still maintain ventilation efficiency in the event of a single fan failure. It also provides real-time feedback on the fault status through the front LED indicator and relay contacts. Air is drawn in from the rear or bottom of the rack to optimize airflow circulation, making it suitable for automation control systems that require long-term stable operation in continuous production fields such as metallurgy and petrochemicals.

Technical specifcations for 6ES7408-1TA01-0XA0

Basic information

Product model: 6ES7408-1TA01-0XA0

Brand: Siemens

Series: SIMATIC S7-400

Purpose: Used for heat dissipation of S7-400 series PLC. When the template in the rack generates high heat, it provides necessary ventilation and cooling for the system to ensure stable operation of the equipment.

2、 Structural composition

Fan components: consisting of three fan units that work together to provide sufficient heat dissipation airflow.

Electronic monitoring unit: used for real-time monitoring of the operating status of the fan to ensure its normal operation.

Base plate design: equipped with cable trays for easy shielding and centralized routing of lines, improving the electromagnetic compatibility and maintainability of the system.

3、 Electrical parameters

Power supply voltage: 24V DC, compatible with the standard power supply system of S7-400 series PLC.

Redundant design: When one fan fails, the other two fans can continue to operate, ensuring sufficient ventilation and preventing the system from shutting down due to overheating.

4、 Installation and maintenance

Installation method: The fan components can be easily installed under the rack without the need for special tools.

Maintenance convenience: Fans, air filters, and electronic templates (monitoring units and power supply units) can be replaced from the front, greatly reducing maintenance difficulty and downtime.

Front panel design: Equipped with a lockable front panel to ensure device security and prevent unauthorized access and operation.

5、 Environmental adaptability

Air intake method: Air can enter from the rear or bottom space, optimizing airflow circulation and improving heat dissipation efficiency.

Working temperature range: Suitable for the common temperature range in industrial sites, ensuring stable operation in various environments.

6、 Status indication and alarm

Fault indication: The fan fault status is indicated by the light-emitting diode (LED) on the front panel, making it easy for operators to detect and handle problems in a timely manner.

Alarm output: Fault signals are sent out through relay contacts, which can be connected to the upper computer or alarm system to achieve remote monitoring and alarm.
