6ES7405-0DA00-0AA0

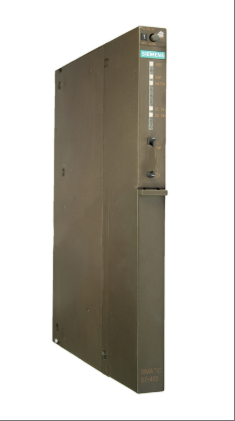

The 6ES7405-0DA00-0AA0 model product is the PS 405 power module of Siemens SIMATIC S7-400 series PLC, which has the ability to convert AC or DC voltage into stable working voltage of 5V DC and 24V DC required by the control system. It adopts a modular design, adapts to the S7-400 series controller architecture, and supplies power to the central rack and expansion units through the backplane bus. Its compact structure can occupy 1 to 3 rack slots, supporting a wide range of input from 85V to 264V AC or 19.2V to 300V DC, with short circuit, overload and overvoltage protection functions. The LED indicator light provides real-time feedback on the output status of 5V DC and 24V DC and backup battery voltage, and the output current specification covers 4A to 20A. It is compatible with redundant power supply configuration and meets the requirements. The demand for high reliability power supply in medium and large-scale automation systems is suitable for industrial scenarios such as process control, mechanical manufacturing, and energy management.
Technical specifcations for 6ES7405-0DA00-0AA0
Basic information
Product model: 6ES7405-0DA00-0AA0
Brand: Siemens
Series: SIMATIC S7-400
Purpose: Used for power supply of S7-400 series PLC, converting AC or DC voltage into stable working voltage of 5V DC and 24V DC required by the control system.
2、 Electrical parameters
Input voltage:
AC input: Some models support AC input, with a rated input voltage of single-phase AC120V/230V (some models are universal for DC 110/230V). But 6ES7405-0DA00-0AA0 focuses more on DC input characteristics, with a rated input voltage of DC24V/48V/60V for its DC input type.
DC input: The rated input voltage range is DC19.2V to 30V (dynamic range allows 18.5V to 30.2V), supporting wide range input.
Output voltage:
5V DC: Rated output current 4A (requires 100mA basic load).
24V DC: Some models have 24V DC output capability, but the specific output current needs to be determined according to the model. 6ES7405-0DA00-0AA0 focuses on 5V DC output characteristics.
Input current: At the rated input voltage of DC24V, the input current is usually 2A (the specific value may vary depending on the model and configuration).
Power consumption: The typical power consumption of the module is 16W (the specific value may vary depending on the model and load).
3、 Structure and Design
Modular design: The power module adopts a modular design, which is easy to install and maintain.
Occupation of slots: According to the configuration, the power module can occupy 1 to 3 rack slots (the specific number of slots depends on the model, 6ES7405-0DA00-0AA0 usually occupies fewer slots).
Cooling method: The power module adopts natural ventilation cooling method, without the need for additional heat dissipation equipment.
Front panel indication: There are light-emitting diodes (LEDs) installed on the front panel to indicate internal faults, normal 5V DC and 24V DC output voltages, and normal backup battery voltage. Simultaneously equipped with a fault confirmation button, an on/off switch for output voltage, a backup battery component, a battery monitoring switch, and a network voltage selector switch.
4、 Environmental adaptability
Working temperature range: typically suitable for a temperature range of -25 ℃ to+60 ℃ (specific values may vary depending on model and configuration), meeting common temperature requirements in industrial sites.
Protection level: Complies with industrial standards and has characteristics such as dust and moisture resistance (specific protection level needs to be determined according to the model).
5、 Security and Certification
Product certification: Through international safety certifications such as CE and UL (specific certification needs to be determined based on the model and configuration), to ensure product safety and reliability.
Protection function: The power module has functions such as overvoltage, overcurrent, and overheating protection to improve system reliability.
