SIEMENS 6ES7223-1PL20-0XA0 New and Original High quality

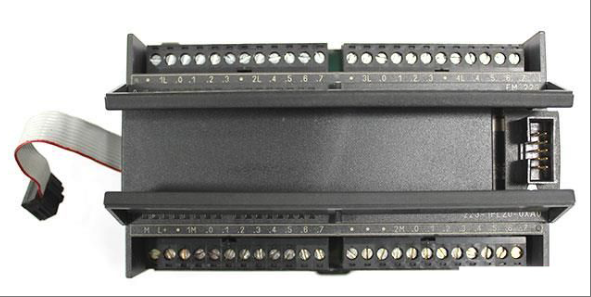

6ES7223-1PL20-0XA0

The 6ES7223-1PL20-0XA0 model product is a digital input/output module suitable for the industrial automation field, belonging to the expansion component of SIMATIC S7-200 series PLC. This module adopts a compact modular design and supports seamless integration with the main station system through standardized interfaces. It has 16 built-in digital input channels and 16 digital output channels, adapted to 24V DC control voltage, and can efficiently process switch signals from field devices. It supports PROFINET/Ethernet communication protocols, is compatible with multi protocol communication requirements, facilitates distributed I/O expansion and system integration, and is suitable for signal acquisition and control tasks in manufacturing, energy management, building automation and other scenarios. The working temperature range of the module is from 0 ℃ to 60 ℃, with high reliability and strong anti-interference ability, which can meet the requirements of industrial sites for system scalability, real-time performance, and functional safety.

Technical specifcations for 6ES7223-1PL20-0XA0

Basic specifications

Module type: Digital mixed input/output module (EM223 series).

I/O points: Equipped with 16 digital input channels (24V DC) and 16 digital output channels (24V DC) to meet complex signal processing requirements.

Module size: Compact in appearance, approximately 71.2mm in length, 80mm in width, and 62mm in height, suitable for standard cabinet installation.

Protection level: IP20 protection standard, suitable for the environment inside the control cabinet.

2、 Electrical parameters

Input characteristics:

Input voltage: 24V DC, compatible with drain/source inputs.

Input current: Supports surge protection to ensure signal stability.

Output characteristics:

Output voltage: 24V DC, supports charging/pulling current mode.

Single channel current: output current 0.75A, total load current ≤ 4A (module rated value).

Power consumption: Typical power consumption of 3W, meeting industrial energy-saving requirements.

3、 Environmental adaptability

Working temperature: 0 ℃ to 60 ℃, supports wide temperature operation.

Storage temperature: -40 ℃ to+85 ℃, ensuring safe storage in extreme environments.

Relative humidity: 5% to 95% (no condensation), suitable for high humidity scenarios.

4、 Functional characteristics

Signal processing: Supports high-speed signal acquisition and control, suitable for complex logic control.

Scalability: Modular design supports multi module expansion, enhancing system flexibility.

Diagnostic function: Integrated LED indicator light, real-time feedback channel status and fault information.

Protection mechanism: equipped with short-circuit protection, overload protection, and reverse connection protection to enhance system reliability.

5、 Communication and Protocol

Communication Protocol: Compatible with PROFINET/Ethernet protocol and supports distributed I/O architecture.

Topology structure: Compatible with bus, tree, or hybrid topologies, suitable for different wiring requirements.

6、 Certification and Standards

Safety certification: Complies with the IEC 61508 SIL 3 functional safety standard.

Electromagnetic compatibility: certified by EN 55032 Class B, with strong anti-interference ability.

Environmental compliance: Passed RoHS certification and meets environmental requirements.
