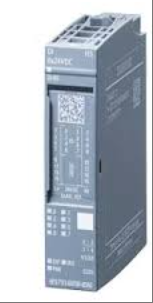

SIEMENS 6ES7131-6BF00-0DA0 New and Original High quality

6ES7131-6BF00-0DA0

The 6ES7131-6BF00-0DA0 model product is a SIMATIC ET 200SP series high-speed digital input module designed specifically for industrial automation. It has 8-channel 24V DC high-speed signal acquisition capability and supports three operation modes: DI standard input, oversampling, and 4-channel counter. It can adapt to A0 type base units for flexible expansion. The module adopts a compact design with a protection level of IP20 and is compatible with PROFINET communication protocol. It can be configured through STEP 7 TIA Portal or V5.5 SP3 version for engineering. Its high-speed counting and signal processing capabilities can meet the real-time data acquisition needs of manufacturing equipment monitoring, building automation control, and water treatment flow detection scenarios. It is suitable for distributed control systems that require multi-channel digital input.

Technical specifcations for 6ES7131-6BF00-0DA0

Basic specifications

Product series: SIMATIC ET 200SP series digital input module.

Module type: Digital input module, model 6ES7131-6BF00-0DA0.

Number of input channels: 8, supporting 24V DC high-speed signal input.

Packaging quantity: 1 piece per package.

Base Unit Adaptation: Suitable for A0 type base units, color code CC01.

2、 Electrical parameters

Input voltage: 24V DC, compatible with standard digital signal input.

Input feature: Supports high-speed signal acquisition to enhance system responsiveness.

Operation mode: Provides three alternative modes:

Standard DI input mode: used for conventional digital signal acquisition.

Oversampling mode: suitable for high-frequency signal acquisition requirements.

4-channel counter mode: supports counting function, suitable for pulse counting scenarios.

3、 Environmental adaptability

Working temperature range: The specific range is not explicitly mentioned, but it meets the requirements of industrial grade environment.

Protection level: The specific level is not explicitly mentioned, but the module design is suitable for installation inside industrial control cabinets.

Electromagnetic compatibility: It has excellent anti-interference ability and reduces the risk of equipment failure.

4、 Functional characteristics

Compatibility: Compatible with multiple Siemens PLC systems, integrating with existing systems without pressure.

Reliability: rigorously tested to ensure stable operation in industrial environments.

Scalability: Supports modular design, allowing for flexible addition of multiple modules to meet system expansion requirements.

5、 Communication and Protocol

Communication protocol: adapted to industrial Ethernet protocols such as PROFINET, supporting distributed I/O architecture.

Topology structure: Compatible with bus, tree, or hybrid topologies, suitable for different wiring requirements.

6、 Certification and Standards

Product certification: Through international certifications such as UL and CE, ensure product quality and reliability.

Environmental compliance: Complies with environmental standards such as RoHS to ensure environmental compliance.
