PFXGP4601TAAC

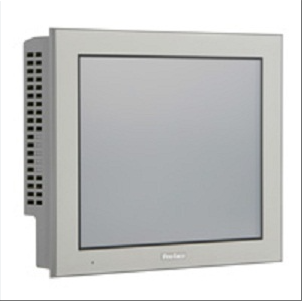

The PFXGP4601TAAC model is a 12.1-inch industrial grade human-machine interface (HMI), featuring a 65536 color TFT true color LCD display with a resolution of 800 × 600 pixels, providing clear and delicate visual effects. The device is equipped with a high-precision resistive touch screen that supports single touch operation and has excellent durability and sensitivity. It supports DC24V wide voltage input, with built-in 32MB storage space and 132KB logical program area. It realizes multi protocol device interconnection through RS-232C, RS-422/485 serial ports and 10/100Mbps Ethernet interfaces, and is equipped with USB 2.0 and SD card slots to meet the needs of efficient data transmission and expansion. The product adopts a fully enclosed fanless design with IP65f protection level, which can operate stably in the working temperature range of 0 ℃ to 55 ℃, and has the ability to resist vibration, impact, and electrostatic interference. It is suitable for real-time monitoring and remote operation and maintenance in heavy industry scenarios such as energy, manufacturing, and ships. With the help of GP Pro EX development software, users can easily build multilingual interfaces (supporting Japanese, Simplified Chinese, etc.) and use rich graphical tools to achieve device status visualization and intelligent management. It is an ideal interactive terminal for digital upgrading in the field of industrial automation.
Technical specifcations for PFXGP4601TAAC
display:
Type: TFT True Color LCD
Size: 12.1 inches
Resolution: 800 × 600 pixels (SVGA)
Display color: 65536 colors
Backlight: White LED (cannot be replaced by the user)
Backlight lifespan: Over 50000 hours (continuous operation at 25 ℃ reduces brightness to 50% of its original level)
Touch panel:
Type: Resistive (Analog, Single Touch)
Resolution: 1024 × 1024
Lifespan: Over 1000000 cycles
Interface:
Serial port (COM1): Asynchronous transmission RS-232C, data transmission rate 2400bps to 115200bps
Serial port (COM2): Asynchronous transmission RS-422/485, data transfer rate 2400bps to 115200bps
Ethernet (LAN): Supports 10BASE-T/100BASE-TX
USB interface: USB 2.0 (TYPE-A connector) x 1, USB 2.0 (Mini-B connector) x 1
SD card slot: Supports SD cards
Storage:
Application storage: 32MB (FLASH EPROM, including logic program area)
Logical program space: 132KB (FLASH EPROM, can accommodate 15000 steps of program)
Backup storage: 320KB (SRAM, backup memory with replaceable lithium battery)
Variable area: 64KB (SRAM, backed up with replaceable lithium battery)
Electrical characteristics:
Input voltage: DC 24V
Rated voltage range: DC 19.2V to 28.8V
Allowable power outage time: not exceeding 10ms
Power consumption: not exceeding 17W
Environmental adaptability:
Working temperature: 0 ℃ to 55 ℃
Storage temperature: -20 ℃ to+60 ℃
Working humidity: 10% RH to 90% RH (no condensation)
Storage humidity: 10% RH to 90% RH (no condensation)
Dust proof level: below 0.1mg/m ³ (insulation level)
Pollution level: Level 2 pollution
Air quality: Non corrosive gases
Air pressure (working altitude): 800hPa to 1114hPa (altitude below 2000 meters)
Mechanical characteristics:
Anti vibration performance: in accordance with IEC/EN61131-2 standard
Impact resistance: Complies with IEC/EN61131-2 standard
Anti interference performance: interference voltage of 1000Vp-p, pulse period of 1 µ s, rise time of 1ns
Antistatic performance: Contact discharge 6kV
Protection level: IP65f NEMA # 250 TYPE 4X/13 (front panel after installation and fixation)
Cooling method: natural air cooling
Weight: not exceeding 2.5kg
Dimensions: W315mm × H241mm × D56mm
Panel opening size: W301.5mm × H227.5mm
