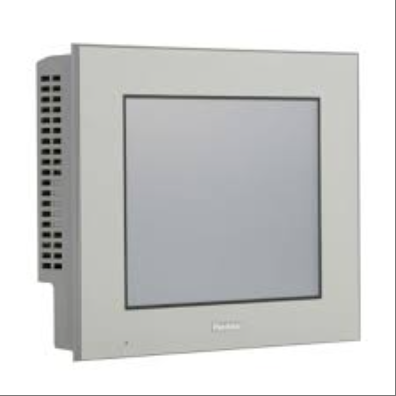

PFXGP4501TADC
The PFXGP4501TADC model is a 10.4-inch human-machine interface (HMI) product that features a 65536 color TFT true color LCD display with a resolution of VGA 640 × 480 pixels. It is paired with an analog resistive touch panel for intuitive operation and clear display effects. This product is equipped with 32MB internal memory, 320KB backup memory, and 64KB variable area. It supports Ethernet, RS-232C, RS-422/485, USB, and SD card slots, and can flexibly connect various industrial equipment. Its coating machine design complies with multiple international standards and has characteristics such as dust prevention and anti-interference, making it suitable for complex industrial environments. This HMI also supports remote data collection and management, and can be combined with tools such as Microsoft Office and SQL through Pro Server EX software to build an economical and efficient data management system, significantly improving production quality and efficiency. It is a reliable solution in the field of industrial automation.
Technical specifcations for PFXGP4501TADC
Display and Touch Performance
Display screen type: 10.4-inch TFT true color LCD, with a resolution of 640 × 480 pixels (VGA), displaying 65536 colors (no flicker)/16384 colors (flicker), providing clear and delicate image display effects.
Backlight: Using white LED backlight, the brightness can be adjusted up to 16 levels, and the lifespan of the backlight is over 50000 hours (continuously working at 25 ℃ until the brightness drops to 50% of its original level).
Touch panel: Analog resistive touch panel with a resolution of 1024 × 1024 and a lifespan of over 1000000 times, providing a sensitive and accurate touch operation experience.
2、 Storage and Program Space
Internal memory: FLASH EPROM 32MB, including logic program area, to meet the storage needs of a large number of programs and data.
Backup storage: SRAM 320KB, using replaceable lithium batteries for backup to ensure data security.
Variable area: SRAM 64KB, also backed up with replaceable lithium batteries for storing variable data.
Program area: FLASH EPROM 132KB, capable of accommodating approximately 15000 program steps, meeting the requirements of complex control logic.
3、 Interface and Communication
Serial port: Provides two types of serial ports, RS-232C and RS-422/485, supporting asynchronous transmission. The data length can be 7 or 8 bits, the stop bit can be 1 or 2 bits, and the verification method can be none, odd, or even. The data transmission rate range is wide, meeting the communication needs of different devices.
Ethernet port: Supports IEEE802.3i/IEEE802.3u standards, provides 10BASE-T/100BASE-TX transmission rates, uses RJ-45 connectors for easy network connection and data transmission.
USB interface: Provides two types of interfaces, USB 2.0 (TYPE-A) and USB 2.0 (Mini-B), supporting high-speed data transmission and a communication distance of up to 5 meters.
SD card slot: Supports SD card expansion storage, facilitating data backup and transfer.
4、 Electrical and Environmental Specifications
Input voltage: DC 24V, rated voltage range from DC 19.2V to 28.8V, allowable power-off time not exceeding 10ms, power consumption less than 17W, instantaneous current not exceeding 30A.
Insulation strength: The power terminal and FG terminal can withstand a voltage of AC1000V and 20mA for less than 1 minute.
Insulation resistance: The insulation resistance between the power terminal and the FG terminal is greater than DC500V and 10M Ω.
Working temperature: 0 ℃ to 55 ℃, storage temperature: -20 ℃ to+60 ℃, suitable for various working environments.
Working humidity: 10% RH to 90% RH (no condensation, wet bulb thermometer temperature below 39 ℃), storage humidity is also 10% RH to 90% RH (no condensation, wet bulb thermometer temperature below 39 ℃).
Pressure and altitude: The working pressure range is from 800hPa to 1114hPa (below an altitude of 2000 meters).
Anti vibration and anti impact performance: in accordance with IEC/EN61131-2 standard, the anti vibration performance is a single amplitude of 3.5mm from 5Hz to 9Hz, a constant acceleration of 9.8m/s ² from 9Hz to 150Hz, and 10 cycles (100 minutes) in each of the X, Y, and Z axes; The impact resistance is 147m/s ², with 3 cycles in each of the X, Y, and Z axes.
Anti interference and anti-static performance: interference voltage of 1000Vp-p, pulse period of 1 µ s, rise time of 1ns (through noise simulator); Contact discharge is 6kV (compliant with IEC/EN61000-4-2, Level 3 standards).
5、 Structure and Size
Structure: Equivalent to IP65f NEMA # 250 TYPE 4X/13 (front panel installed and fixed), providing excellent protection performance.
Cooling method: Natural air cooling, no additional cooling equipment required.
Weight: less than 2kg (only for the main unit), easy to install and transport.
Dimensions: W272.5mm × H214.5mm × D57mm, compact design saves space.
Panel opening size: W259mm × H201mm, convenient for installation on control cabinets and other equipment.
Panel thickness: 1.6mm to 5mm, suitable for installing panels of different thicknesses.
