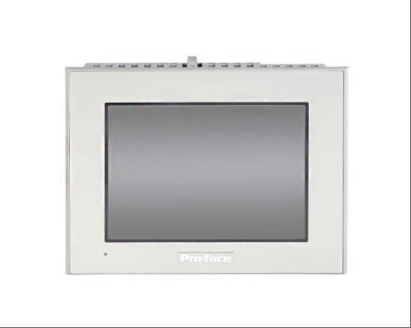

PFXGP4402WADW
The PFXGP4402WADW model is a 10.4-inch industrial grade widescreen human-machine interface (HMI), featuring a TFT LCD display with a resolution of 800 × 480 pixels, supporting 256 color display, and clear and delicate images. It is equipped with a resistive touch screen, which is sensitive and durable to operate, meeting the complex interaction needs of industrial sites. The device supports multiple interfaces such as USB, Ethernet, and serial communication (RS-232C/RS-422/485), making it easy to interconnect with various industrial equipment. At the same time, this model has an IP65f protection level, which can effectively resist dust and water droplet invasion, and is suitable for various harsh industrial environments such as energy, manufacturing, and automated production lines, providing users with stable and reliable monitoring and control solutions.
Technical specifcations for PFXGP4402WADW
Display screen parameters
Type: TFT True Color LCD
Size: 7-inch widescreen
Resolution: 800 × 480 pixels (WVGA)
Display color: 65536 colors (no flicker)/16384 colors (flicker)
Backlight: White LED (Users cannot replace it by themselves, please contact the local Pro face branch for replacement)
Backlight lifespan: Over 50000 hours (continuous operation at 25 ℃, brightness drops to 25% of original)
Brightness adjustment: Supports 16 levels of adjustment, which can be done through touch panel or software
2、 Touch panel parameters
Type: Resistive (Analog, Single Touch)
Resolution: 1024 × 1024
Lifespan: Over 1000000 cycles
3、 Interface parameters
Serial port (COM1): Asynchronous transmission RS-232C, data transmission rate 2400bps to 115200bps, D-Sub 9-pin (convex) connector
Serial port (COM2): Asynchronous transmission RS-422/485, data transmission rate 2400bps to 115200bps, D-Sub 9-pin (convex) connector
Ethernet interface: IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, RJ-45 connector x 1
USB interface:
USB 2.0 (TYPE-A connector) x 1, maximum transmission distance of 3 meters
USB 2.0 (Micro-B connector) x 1, output current below 500mA, power supply voltage 5VDC ± 5%, communication distance below 5m
SD card interface: SD card slot x 1
4、 Storage parameters
Application Memory: 32MB (FLASH EPROM)
Logical program space: 132KB (can accommodate 15000 steps of program)
Backup storage: 128KB (SRAM)
5、 Electrical parameters
Input voltage: DC 24V
Rated voltage range: DC 20.4V to 28.8V
Voltage drop: below 10ms
Instantaneous current: below 30A
Interference voltage: 1000Vp-p
Pulse cycle: 1 µ s
Rise time: 1ns (via noise simulator)
Insulation strength: 1000Vac, 20mA less than 1 minute (between power terminal and FG terminal)
Insulation resistance: 500Vdc, above 10M Ω
6、 Environmental parameters
Working temperature: 0 ℃ to 50 ℃
Storage temperature: -20 ℃ to+60 ℃
Working humidity: 10% to 90% RH (no condensation, wet bulb thermometer temperature: below 39 ℃)
Storage humidity: 10% to 90% RH (no condensation, wet bulb thermometer temperature: below 39 ℃)
Dust prevention: below 0.1mg/m ³ (insulation level)
Pollution level: Level 2 pollution
Air pressure (working altitude): 800hPa to 1114hPa (altitude below 2000 meters)
7、 Mechanical parameters
Anti vibration performance: Complies with IEC/EN61131-2 standard, with a single amplitude of 3.5mm from 5 to 9Hz, a constant acceleration of 9.8m/s ² from 9 to 150Hz, and 10 cycles (100 minutes) in each of the X, Y, and Z axes
Impact resistance: Complies with IEC/EN61131-2 standard, 147m/s ², 3 times for X, Y, and Z axes each
Resistance to rapid transients/explosions: IEC 61000-4-4
Antistatic performance: Contact discharge 6kV (compliant with IEC/EN61000-4-2, Level 3 standards)
Protection level: IP65 (front panel), Type 4X (indoor use only)
Cooling method: natural air cooling
Dimensions: W207mm × H152.4mm × D38.2mm
Weight: Approximately 1.12kg
