Omron SRT2-OD16-1 New and Original High quality

SRT2-OD16-1

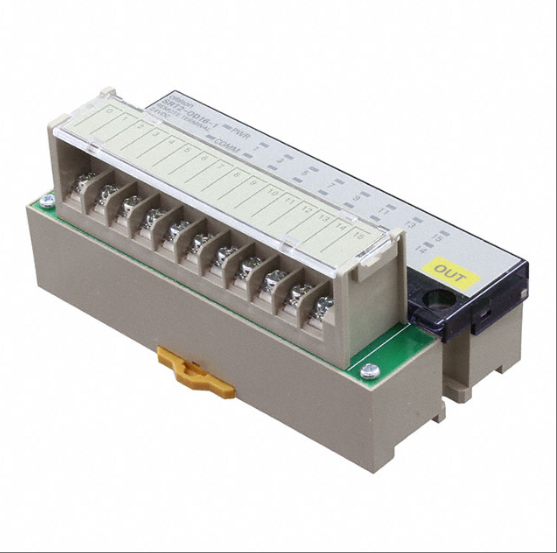

The SRT2-OD16-1 model is a remote I/O terminal (transistor type) output module, which is installed on a DIN rail and equipped with 16 solid-state output channels. It supports 24VDC power supply and is suitable for building high-speed remote I/O systems under PLC. Its design can effectively reduce the wiring requirements of sensors and drivers inside the equipment, and improve the efficiency of industrial automation control. The product achieves reliable connection through screw terminals, with a working temperature range of 0 ° C to 55 ° C, complying with international safety certification standards such as CE, CSA, UL, etc. It weighs about 110 grams and is suitable for various industrial scenarios. It should be noted that this model has been discontinued and market inventory is limited. When purchasing, it is recommended to first contact authorized dealers to confirm delivery time and alternative solutions, and pay attention to the possibility of actual transaction prices adjusting with the purchase quantity and specifications.

Technical specifcations for SRT2-OD16-1

Electrical specifications

Output type: 16 channel solid-state output (transistor type)

Power supply voltage: 24VDC

Current rating: Single channel maximum 1A

Output frequency: Typical value 10kHz (high-frequency response capability)

Working voltage range: Supports industrial grade 24VDC stable power supply, strong anti-interference ability

2、 Physical characteristics

Installation method: DIN rail installation, compatible with standard 35mm rail

Termination method: Screw terminal connection, supporting wire diameters of 0.2-2.5mm ²

Size and weight:

Size: Approximately 110mm (length) x 100mm (width) x 30mm (height)

Weight: 110 grams (lightweight design for easy integration)

Protection level: The shell protection level is not clearly marked, but the terminal protection complies with industrial wiring standards

3、 Environmental adaptability

Working temperature range: 0 ° C to 55 ° C (some alternative models support -10 ° C to 55 ° C)

Storage temperature range:- 20 ° C to 70 ° C

Humidity tolerance: 5%~95% RH (non condensing)

Certification standards: CE, CSA, UL certification, in compliance with EU and North American industrial safety regulations

4、 Functional characteristics

Signal transmission: high-speed remote I/O expansion, reducing on-site wiring complexity

Compatibility: Compatible with Omron C-series PLC and supports mixing with XWT series modules

Application scenarios:

Sensor signal drive

Actuator control (such as solenoid valves, relays)

Distributed Control System (DCS)
