Omron C200H-OD217 New and Original High quality

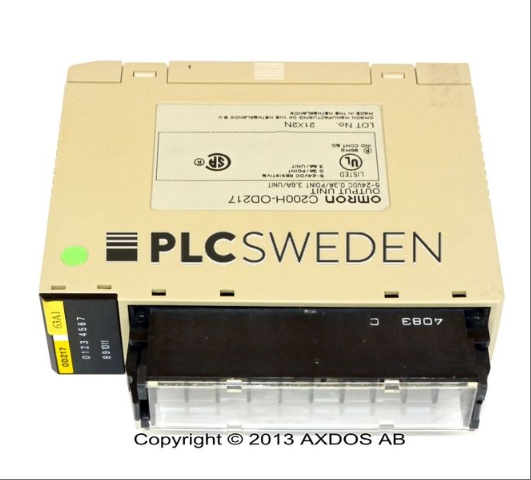

C200H-OD217

The C200H-OD217 model product is a transistor output module, which belongs to the basic I/O module of the C200H series PLC. It adopts a modular structure, supports control room installation, has 12 point source output capability, rated voltage range of DC5-24V, maximum load current of 0.3A, external wiring is achieved by disassembling the terminal block, compatible with SYSBUS remote I/O slave station rack, occupies one channel unit, and complies with international safety certification standards such as UL, CSA, CE, etc. This module adopts a screw terminal connection method and can be expanded into a high-density output unit. It supports up to 8 solid-state relay outputs and has a maximum single channel switching capacity of AC250V/DC24V 2A. It is suitable for switch signal control scenarios in the industrial automation field, such as driving contactors, solenoid valves and other actuators. Its compact design significantly reduces the complexity of on-site wiring and can achieve data exchange with the upper computer through communication interfaces such as SYS-MAC-CPT.

Technical specifcations for C200H-OD217

Electrical and output characteristics

Output type: transistor output, sourcing, supports DC loads.

Output points: 12 points, single channel independent control, suitable for distributed signal drive.

Rated voltage: DC5-24V, compatible with commonly used DC power supplies in industrial sites.

Maximum load current: 0.3A/point, the total load current needs to be calculated in conjunction with the system design.

Switching capability: The maximum load capacity of a single channel is AC250V/DC24V 2A, which can drive actuators such as contactors and solenoid valves.

2、 Physical and installation parameters

Installation method: Backplane installation, compatible with C200H series PLC rack.

Wiring method: Disassemble the screw terminal block, supporting wire diameters of 0.2-2.5mm ² for easy maintenance and replacement.

Number of occupied units: 1CH (channel unit), occupying 1 slot in the PLC rack.

Protection level: The enclosure protection level is not clearly marked, but the terminal design complies with industrial wiring standards.

3、 Environment and Certification

Working temperature: 0 ° C to 55 ° C, suitable for conventional industrial environments.

Storage temperature: -20 ° C to 70 ° C, ensuring stability in low or high temperature environments.

Humidity tolerance: 5%~95% RH (non condensing), suitable for high humidity scenarios.

International certifications: CE, UL, CSA, NEMKO, Lloyd's Register, compliant with European and American safety standards.

Electromagnetic compatibility: certified by EN61131-2 (EMS) and EN50081-2 (EMI), with strong anti-interference ability.

4、 Expansion and Compatibility

System compatibility: compatible with C200H and CS1 series PLCs, supporting SYSBUS remote I/O slave rack.

Scalability: More I/O units can be connected through the expansion of the motherboard or fiber optic transmission system to achieve distributed control.

Communication interface: Supports communication between SYSMAC LINK/NET units or RS-232C/RS-422 devices, simplifying device networking.

5、 Functions and Applications

Signal control: Directly output switch signal (0/1) to drive contactors, relays, solenoid valves, etc.

Application scenarios: Equipment control, status monitoring, logic execution, etc. in industrial automation.

Programming support: Communication and control logic can be implemented through ladder diagram programs or function block (FB) libraries.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment

More Products In Stock:
