Omron NS8-TV00B-V2 New and Original High quality

NS8-TV00B-V2

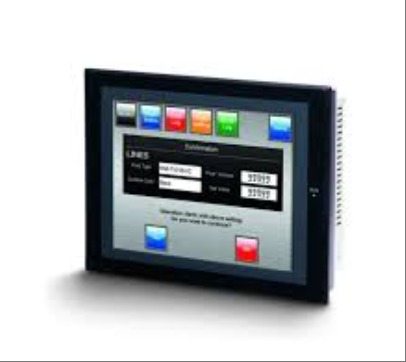

The NS8-TV00B-V2 model product is an 8.4-inch color TFT touch screen human-machine interface (HMI), designed with a black casing, featuring a high brightness LED backlit display screen and an IP65 protection level front panel. It can effectively prevent dust and water, adapt to a working temperature range of 0 ° C to 50 ° C and a humidity environment of 35% to 85%, and is compatible with DC24V DC power supply. Its core functions include supporting 256 color display and 640 × 480 resolution, built-in Compact Flash slot for data storage and software updates, providing RS-232C serial communication interface and USB programming port, and supporting seamless connection with Omron PLC and other brand devices through CX One development environment. This product comes standard with 40MB onboard memory, supports up to 160000 data records and 5000 alarm event records, supports 16 language displays, and integrates ladder diagram editing function. It can be directly programmed and debugged on site without a PC, making it suitable for industrial automation scenarios that require high visualization and operational flexibility.

Technical specifcations for NS8-TV00B-V2

Display parameters:

Display size: 8.4-inch color TFT display screen with high brightness LED backlight, clear effective display area, suitable for industrial environments.

Resolution: 640 × 480 dots, providing a delicate visual display effect.

Display color: 256 colors (some sources mention 32768 colors for displaying. BMP/. JPG images), meeting diverse display needs.

Electrical parameters:

Power supply voltage: DC24V, with an allowable voltage range of DC20.4-27.6V (i.e. DC24V ± 15%), suitable for common DC power supply systems in industrial sites.

Environmental adaptability:

Working temperature range: 0 ° C to 50 ° C, suitable for temperature changes in most industrial environments.

Humidity range: 35% to 85% (no condensation), ensuring stable operation even in humid environments.

Protection level: The front panel has a protection level of IP65, with dustproof and waterproof capabilities, and can resist harsh environments such as oil stains and dust.

Interface and Communication:

Communication interface: Supports RS-232C serial communication interface, and some models may support Ethernet interface for convenient data exchange with other devices.

Memory card slot: Provides a Compact Flash slot for software updates, data/alert logging, and configuration file storage.

USB programming port: Supports programming through the USB port, making it convenient for users to write and debug programs.

Functional features:

Multi language support: Supports up to 16 language displays, making it convenient for users from different countries and regions to use.

Data recording and alarm: Supports up to 160000 data records and 5000 alarm event records, helping users to timely understand device status and conduct data analysis.

Graphics and animation support: Supports standard objects such as bitmap, trend chart, animation, etc., providing rich visual effects.

FA Integration Kit: The standard FA Integration Kit "CX One" is provided for simulating the integration of graphic design software, facilitating system integration and debugging for users.

Mechanical parameters:

Dimensions: The specific dimensions may vary slightly depending on the product version or configuration, but are generally designed to be compact and easy to integrate on the control cabinet or operation panel.

Installation method: Supports wall mounted installation with flexible installation angles.

Certification and Standards:

Product certification: Complies with international safety certification standards such as CE to ensure the safety and reliability of the product.

Environmental standards: Compliant with RoHS and other environmental directives, lead-free design, environmentally friendly and pollution-free.
