NS5-MQ10B-V2

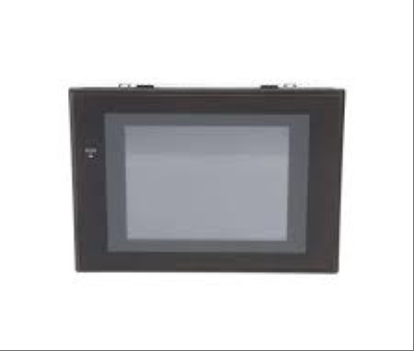

The NS5-MQ10B-V2 model product is a 5.7-inch color TFT touch screen human-machine interface (HMI), designed with a black shell and equipped with a high brightness LED backlit display screen. The front panel has an IP65 protection level, which can effectively prevent dust and water, adapt to a working temperature range of 0 ° C to 50 ° C and a humidity environment of 35% to 85%, and is compatible with DC24V ± 15% DC power supply. It comes standard with RS-232C serial communication interface and supports memory card expansion function. Combined with resistive touch technology and industrial grade display performance, it can operate stably in mechanical manufacturing, automation production lines and other scenarios, providing a reliable human-machine interaction solution for small and medium-sized devices.
Technical specifcations for NS5-MQ10B-V2
Basic information
Series: NS
Type: Touch screen
Display size: 5.7 inches
Display type: Color
Shell color: Black
2、 Electrical parameters
Power supply voltage: 24VDC (allowable voltage variation range is DC20.4-27.6V, i.e. DC24V ± 15%)
3、 Environmental adaptability
Working temperature range: 0 ° C to 50 ° C (Note: The working environment temperature is constrained by the installation angle. If no expansion device is installed, the working environment temperature range is 0-45 ° C; when a video input unit or controller link interface unit is installed, the working environment temperature range is 0-35 ° C; when the installation angle is a horizontal inclination angle of 30-90 ° C, the working environment temperature range is 0-50 ° C)
Storage temperature range:- 20 ° C to 60 ° C
Working environment humidity: 35% to 85% (0-40 ° C), 35% to 60% (40-50 ° C) (no condensation)
Operating environment: Non corrosive gas
Intrusion protection: IP65 (dustproof, waterproof); NEMA 4
Anti interference: Complies with IEC61000-4-4 standard and can withstand transient interference of 2kV (power line)
Impact resistance: It can withstand an impact of 147m/s ² during operation, with 3 impacts in the X, Y, and Z directions each
Vibration resistance: During operation, it can withstand vibrations of 5-8.4Hz, 3.5mm single amplitude, or 8.4-150Hz, 9.8m/s ², with at least 10 vibrations in the X, Y, and Z directions each
4、 Display parameters
Effective display area: width 117.2 x height 88.4mm
Display color: 256 colors
Points: Horizontal 320 points x Vertical 240 points
Perspective: Left/Right: 80 °, Up: 80 °, Down: 60 °
Screen data capacity: 60Mbyte
Brightness adjustment: Three or 32 levels of brightness adjustment can be made from the touchscreen screen
Backlight error detection: equipped with backlight error detection function, the running indicator light will notify by flashing green light
5、 Touch screen parameters
Touch screen mode: Matrix blocking film
Switching number/resolution: 300 (horizontal 20 × vertical 15), switching 16 × 16 points each time
Service life: 1000000 touch operations
6、 Storage and Expansion
Storage card support: Supports storage card expansion
Screen data capacity: 60MB (image data supports BMP or JPG format, 32768 colors)
7、 Software and Features
Language support: Supports 42 languages, including Japanese, Simplified Chinese, Traditional Chinese, Korean, English, French, German, Italian, Portuguese, Spanish, etc
Display color label: can be specified in CX Designer, supports specifying font, style, and size
Number, alarm, and string display: Supports stretchable Gothic font, with an adjustable zoom range between 6-255 points; Simultaneously supporting multiple font styles such as coarse, standard, and fine
Flashing function: Supports flashing object function, can be selected from 10 registered flashing setting types, and can set flashing speed and range
