Omron NS5-TQ11B-V2 New and Original High quality

NS5-TQ11B-V2

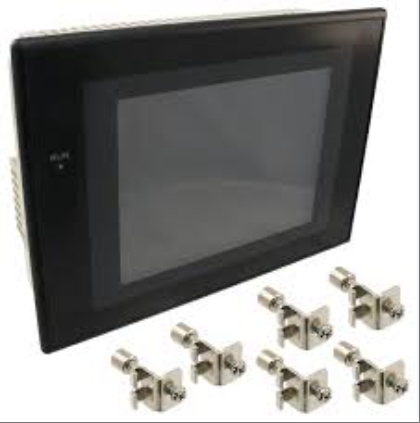

The NS5-TQ11B-V2 model product is a 5.7-inch color TFT touch screen human-machine interface (HMI) belonging to the NS series. It adopts a black shell design, with high brightness LED backlight display and sensitive resistive touch function, supporting multi device collaborative operation and real-time monitoring in industrial sites. Its core advantages include built-in Ethernet interface for high-speed data exchange, equipped with storage card interface to expand storage capacity, and IP65 protection level front panel protection, which can resist harsh environments such as oil pollution and dust. The product is compatible with 24VDC DC power supply system, with a working temperature range of 0 ° C to 50 ° C, supports multilingual interface switching, and complies with RoHS environmental standards. It is widely used in mechanical manufacturing, production line automation and other scenarios, and is an ideal solution for small and medium-sized industrial equipment to achieve human-machine interaction and data management.

Technical specifcations for NS5-TQ11B-V2

Display and Touch Control

Display type: 5.7-inch color TFT LCD display screen with high brightness LED backlight, ensuring clear display under various lighting conditions.

Touch Control Method: Adopting a resistive touch screen, supporting glove operation, suitable for industrial site operation needs, and with high touch sensitivity.

Electrical and Power Supply

Power supply voltage: Supports DC24V ± 15% power supply, i.e. 20.4V to 27.6V, compatible with common DC power supply systems in industrial sites.

Power consumption: The power consumption is relatively low and meets the design requirements of energy-saving devices. The specific power consumption value may vary depending on the usage conditions.

Environmental adaptability

Working temperature range: 0 ° C to 50 ° C, suitable for temperature changes in most industrial environments.

Protection level: The front panel has a protection level of IP65, with dustproof and waterproof capabilities, and can resist harsh environments such as oil stains and dust.

Humidity range: From 0 ° C to 40 ° C, the humidity range is 35% to 85%; At 40 ° C to 50 ° C, the humidity range is 35% to 60%, and there is no condensation.

Anti interference: Complies with IEC61000-4-4 standard, can withstand transient interference of 2kV (power line), ensuring stable operation in strong electromagnetic environment.

Interface and Communication

Communication interface: Supports RS-232C serial communication interface, facilitating data exchange with other devices. Some information mentions the possibility of having Ethernet ports, but specific configurations need to refer to the product manual.

Storage card interface: Supports storage card expansion for easy data recording and program backup.

Mechanical and Installation

Dimensions: The specific dimensions may vary slightly depending on the product version or configuration, but are generally designed to be compact and easy to integrate on the control cabinet or operation panel.

Installation method: Supports wall mounted installation, with installation angles ranging from 30 ° to 90 ° in the horizontal direction, providing flexible equipment layout solutions.

Weight: relatively light, easy to handle and install.

Function and Features

Multi language support: Supports multiple language displays, making it convenient for users from different countries and regions to use.

Alarm and archiving function: Equipped with alarm prompts and data archiving capabilities, it helps users to timely understand the equipment status and conduct data analysis.

Development environment compatibility: Compatible with Omron CX One and other development environments, making it easy for users to write and debug programs.

Certification and Standards

Safety certification: Complies with UL 508, UL 1604, EMC directive, NK and LR standards, etc., ensuring the safety and reliability of the product.

Environmental standards: Compliant with RoHS and other environmental directives, lead-free design, environmentally friendly and pollution-free.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
