OMRON CS1W-OD211 Digital I/O Units Brand new

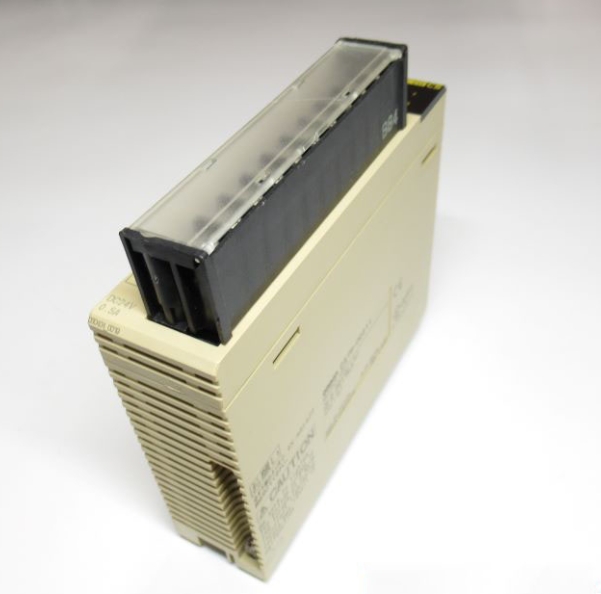

OMRON CS1W-OD211 Digital I/O Units

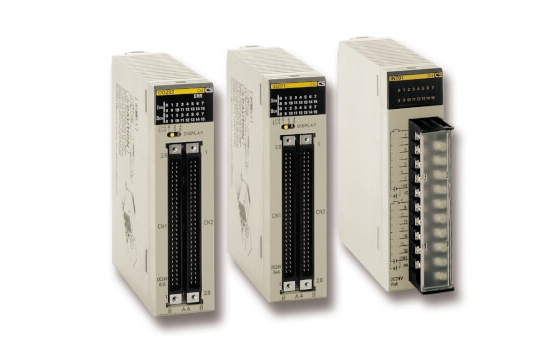

Digital I/O units serve as the PLCs interface to achieve fast, reliable sequence control. A full range of units, from high-speed DC inputs to relay outputs, let you adapt CS1 to your needs.

CS1 units are available with various I/O densities and connection technologies. Up to 16 I/O points can be wired to units with detachable M3 screw terminals directly. High-density 32- and 64- point I/O units are equipped with standard 40-pin connectors. Prefabricated cables and wiring terminals are available for easy interfacing to high-density I/O units.

Specification

• Estimated Lead Time : Usually ships in 1 - 10 working days.
• CS1W-OD211
• Transistor output unit
• Output points: 16 points sink type
• Rated voltage : DC12 ~ 24V
• The maximum load current: 0.5A / point 8A / unit
• External connection other: Removable terminal block
• Occupancy points: 1CH
• Rated Voltage : 12 to 24 V DC
• Operating Load Voltage Range : 10.2 to 26.4 V DC
• Maximum Load Current : 0.5 A/point, 4.0 A/common, 8.0 A/Unit
• Maximum Inrush Current : 4.0 A/point, 10 ms max.
• No. of Circuits : 16(8 points/common, 2 circuits)
• Internal Current Consumption : 5 V DC 170 mA max.
• Fuses: None
• External Power Supply: 10.2 to 26.4 V DC, 20 mA max.
• Shipping Weight: 1.3 Kg
