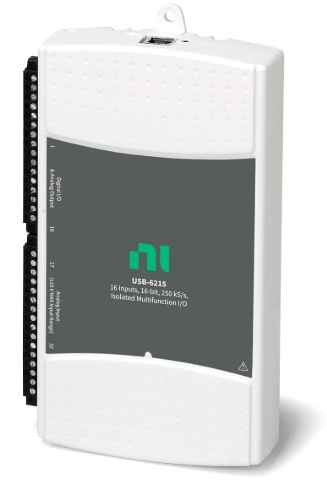

NI USB-6215 4 DO USB Multifunction l/O Device
The Nationallnstruments UsB-6215 (Part Numbers:780105-01,79677-01) is an isolated multifunction data acquisition (DA0) device intended for a variety ofindustrialautomation test, control, and design aplications. With its extensive feature set, whichincludes digital input/output, analogue input/output, and two 32-bit counters,it isappropriate for a variety of applications, including inrvehicle data acquisition,field monitoring, embeded OM appications,and portable data logging. Par number 77967701 is the identifving number for the standard variation ofthe UsE-6215, while par number 780105-01 is the version ofthe device thatis designed as a base for linux andMac.

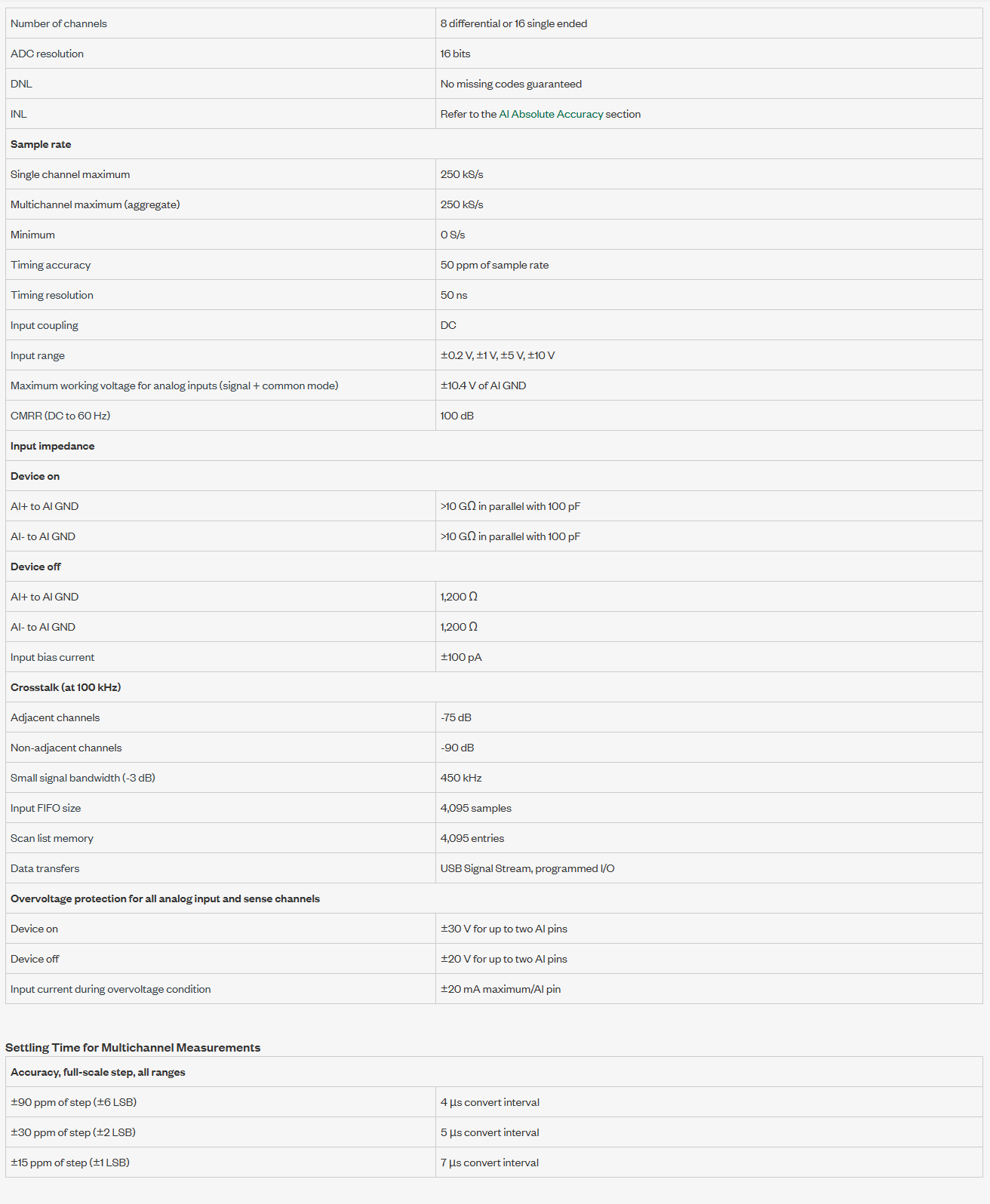

Withits 60 V CAT l isolation,the UsB-6215 offers enhanced safety and precision, ensuring accurate readings even in harsh setings. lts bus-powered operation andightweigh mechanical housing increase portabity. featuring 16-bitresoltion and a maximum sampling rate of250kS's per channel,the device offers 8 diferentialor 16single-ended analogue input chanels. it has remarkable features including 50 ppm timing precision, 100 d8 common-mode rejction ratio (CMRR), and overvoltageprotection up to +30 V. lt enables many input ranges (-10 V to +10 V)
The UsB-6215 has two channels with 16.bit resoluion and a maximum update rate of250 k$/s each channel for analogue output it is appropriate for waveform creationand control applications because it produces accurate output signals with minimal distortion and quick seting periods. The UsB-6215 provides two generalpurposecounters/timers, four diital input and fou dicital output channels, and analog V0, Pulldownresistors and +20 Vinputvoltage protection are features of the diital /ochannels that provide reliable signal handling
The device has a fiF0 size of,023 samples for data storage,confgurable routing choices, and suppot for a vanety of counter measures and output applications. lts UsBSignal Stream technology improves performance and dependabiity by allowing bidirectional,high-sped data streaming over UsB. Measuring 16.9 cm x 9.4 cm x 3.1 cm andweighing 206 g,the UsB-6215 is a compact device. lthas a Series B receptacle for UsB connections and 16-position combicon connectors for /0 cabling.t is appropriatefor indoor use in a variety of settings, with an operational temperature range of0 'c to 45 °c and a storage temperature range of-20 °c to 70 'c.
Information：
Manufacturer Nr.:USB-6215
Manufacturer: NI
Specifications：
Type：Multifunction I/O Device
Analog Input Channels：16 single-ended, 8 differential
Maximum Sample Rate：250 kS/s
Analog Input Resolution：16 bits
Connector Type：Screw Terminal
Dimensions：6.65 in. × 3.70 in. × 1.20 in.
Weight：7.2 oz.
