LENZE I55AE175F10V10000S New and Original High quality

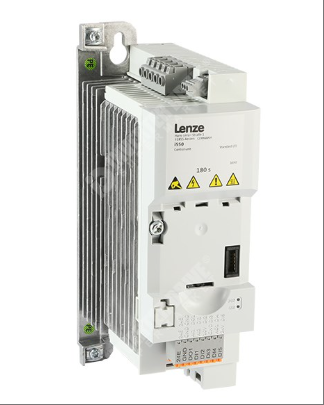

I55AE175F10V10000S

The I55AE175F10V10000S frequency converter is a high-performance drive device designed specifically for the field of industrial automation. It uses advanced vector control and direct torque control technology to achieve high-precision dynamic adjustment of motor speed and torque. The rated power of this product is suitable for a 5.5kW load, supports three-phase 380V power supply, and has an output frequency range of 0-650Hz. It has the ability to operate in a wide temperature range (-20 ℃ to+60 ℃) and an IP65 protection level, meeting the high dynamic response requirements of textile machinery, packaging equipment, and other high response scenarios. Its compact modular structure supports flexible installation, built-in motor protection function and RFI filter can effectively suppress electromagnetic interference, compatible with mainstream industrial bus protocols such as CANopen and EtherCAT, and significantly improves equipment operation stability and production efficiency by optimizing signal transmission efficiency and dynamic response speed.

Technical specifcations for I55AE175F10V10000S

Power and electrical parameters

Rated power: Suitable for 7.5kW three-phase motors (some information points to 5.5kW, to be confirmed based on specific load types), supporting a wide power range coverage of 0.25-132kW.

Supply voltage: Three phase 380V (± 10% fluctuation range), compatible with common voltage levels in industrial power grids.

Output frequency: 0-650Hz, meeting the control requirements of high-speed motors.

Control mode: Supports V/f control, vector control (SVC), and torque control (VTC), adapted to different load characteristics.

Overload capacity: 180% rated current for 60 seconds, improving the equipment's impact resistance performance.

2、 Mechanical and structural parameters

Protection level: IP65 (standard), optional IP66/IP67 enhanced protection, suitable for harsh environments such as dust and humidity.

Cooling method: forced air cooling (built-in fan), supporting external radiator or cold plate technology (optional).

Installation method: Wall mounted or rail mounted, modular design supports separation of control unit and power unit.

Dimensions: Approximately 265mm (length) x 98mm (width) x 95mm (height), compact structure saves control cabinet space.

Weight: Approximately 40kg (including packaging), the specific weight may vary slightly due to differences in configuration.

3、 Function and performance parameters

Communication interface: Integrated with industrial bus protocols such as CANopen, EtherCAT, PROFINET, etc., supporting multi device interconnection.

Control accuracy: Speed control accuracy ± 0.01%, torque control accuracy ± 3%, meeting high dynamic response requirements.

Starting torque: 200% rated torque (SVC mode), suitable for heavy-duty starting scenarios.

Braking function: Built in braking unit (requires external braking resistor), supports quick shutdown and energy feedback.

Motor compatibility: Suitable for asynchronous motors (IM) and permanent magnet synchronous motors (PMSM), supporting open-loop/closed-loop control.

4、 Environmental and reliability parameters

Working temperature: -20 ℃ to+60 ℃ (short-term+70 ℃), suitable for extreme temperature environments.

Storage temperature: -40 ℃ to+85 ℃, ensuring long-term storage stability of the equipment.

Humidity range: 5% -95% without condensation, resistant to corrosion in high humidity environments.

Vibration level: Complies with IEC 60068-2-6 standard, with excellent anti vibration performance.

Mean Time Between Failures (MTBF): ≥ 100000 hours, reducing maintenance costs.

5、 Security and authentication parameters

Safety Function: Integrated SIL3 certification functions such as STO (Safe Torque Off) and SS1 (Safe Parking 1).

Electromagnetic compatibility (EMC): Complies with EN 61800-3 standard and has strong anti-interference ability.

Certification standards: CE, UL, cUL, RoHS, meet global market access requirements.

Protection mechanism: overvoltage/undervoltage protection, overcurrent protection, short circuit protection, ground fault protection.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
