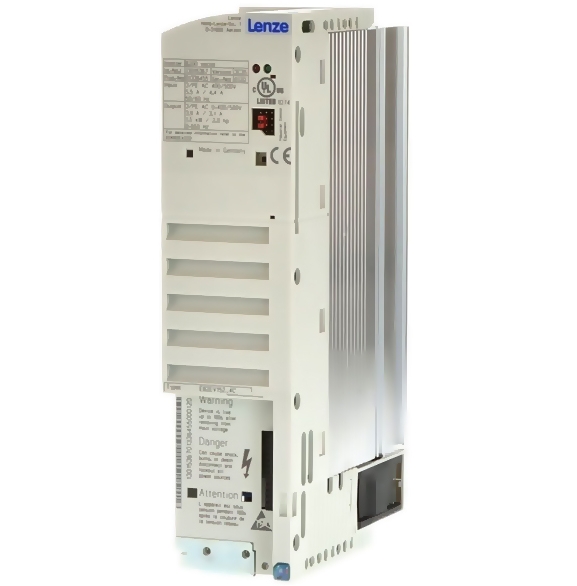

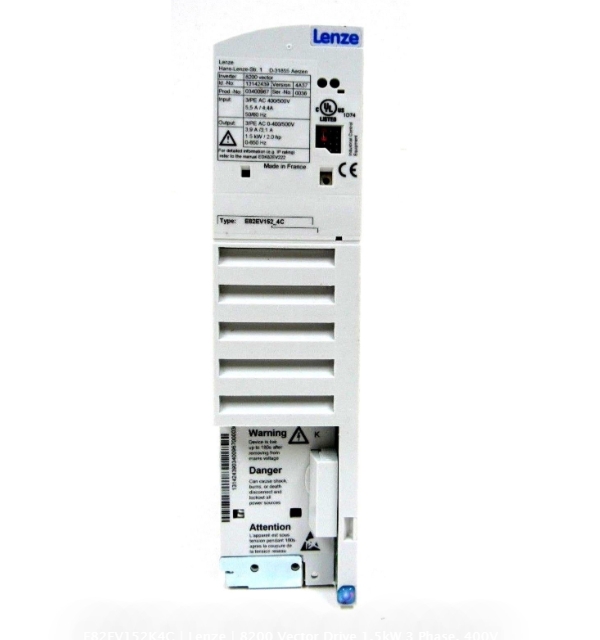

Lenze E82EV152K4C 8200 Vector Drive
Description
The Lenze 8200 AC Drive frequency inverter. Complete with everything you need for convenient operation, handling, diagnostics and communication. This is what the 8200 vector modular range of frequency inverters in the power range from 0.25 to 90 kW stands for. Pluggable function modules enable precisely tailored integration of the 8200 vector into the control and automation architecture of your machine or installation.
Technical Data
Model: E82EV152K4C
Manufacturer : Lenze
Essential : Frequency inverter (base controller)
Motor power [kW] : 1.5
Normal operation (150% overload)
Operation with increased power rating (120% overload)
Voltage [V] : 3-400
Fuse [VDE] : M10 A
Fuse [UL] : 10 A
Circuit-breaker VDE : B10 A
Cable cross-section(mm2): 1.5
Cable cross-section(AWG) : 16
Size : 10 x 38
8200 vector
Threshold UDC [V DC] :790 (adjustable)
Peak braking power [A DC] : 3.8
Max. continuous current [A DC] : 1.92
Smallest permissible brake resistance (UDC = 790 V)[?] : 230
Current derating :
• over 40ºC, derate the peak braking power by 2.5%/ºC
• over 1000 m above sea level, derate the peak braking power by 5%/1000 m
Switch-on cycle : Max. 60 s peak brake current, then at least 60 s recovery time
Place of Original : Germany
Type : Inverter E82EV152K4C
Rated Current : 3.9 A
Phases : 3
Voltage Input : 400V
Our Services:
1、All our products are new and original, and of good quality.
2、Our prices are very competitive.
3、We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1)100% brand New and Original Factory Seal!
2)Warranty: 1 year
3)Package: Original packing with cartons.
4)Delivery time: Shipped in 3-7 days after payment
5) All the goods will be tested before shipment.

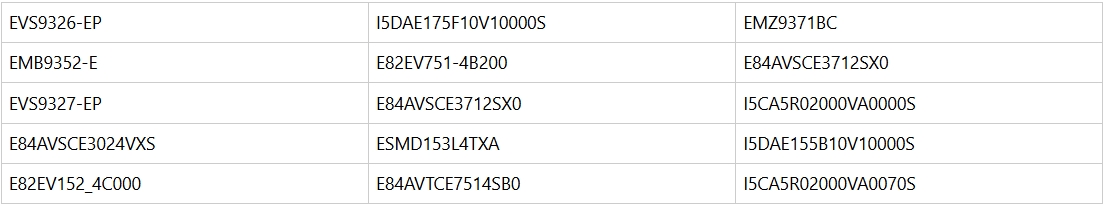

More Products In Stock:
