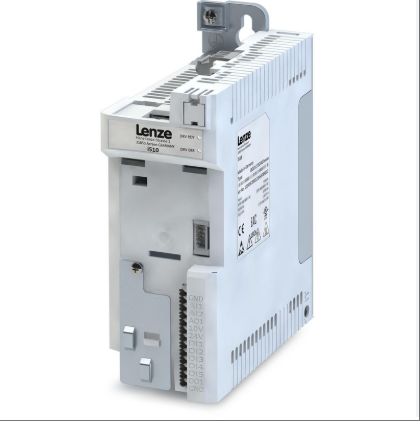

I51AE125B10V10000S
The I51AE125B10V10000S model product is a high-performance compact servo drive designed specifically for high-precision motion control requirements in the industrial automation field. Its core advantage lies in integrated and modular design, supporting three-phase 220V voltage input, rated power of 3.7kW, suitable for motors with a rated torque of 10Nm, capable of covering multiple speed adjustments from 1500-4500 rpm, and supporting 550Hz high-frequency output, suitable for heavy-duty equipment such as plate rolling machines and wire drawing machines. The product is made of plastic shell material, weighs 20kg, and has a compact size (length 265mm x outer diameter 98mm), which is convenient for optimizing the control cabinet space; Protection level IP20, suitable for dry environments ranging from -20 ℃ to 24 ℃, compatible with heavy load conditions. It has outstanding functional features, supports industrial Ethernet protocols such as EtherCAT, and can achieve multi axis synchronous control; Built in PID controller, supporting closed-loop regulation of pressure, flow rate, etc; Integrate STO safety torque shutdown function to ensure the safe operation of equipment; Expand digital/analog input/output, relay and other signals through modular interfaces, compatible with external encoder feedback, and adaptable to complex process flows. The product comes with a one-year warranty and is suitable for metal processing, textile machinery, and other scenarios. It combines dynamic response with reliability and is an efficient driving solution for Industry 4.0 scenarios.
Technical specifcations for I51AE125B10V10000S
Basic electrical parameters
Rated power: 3.7kW, suitable for three-phase asynchronous or permanent magnet synchronous motors, can meet the driving power requirements of small and medium-sized industrial equipment.
Rated voltage: 220V (three-phase), supporting standard industrial voltage input.
Rated torque: 10Nm, suitable for motors with corresponding torque requirements.
Weight: 20kg, product made of plastic shell material, compact structure, easy to install.
Size: Length 265mm, outer diameter 98mm, compact design, conducive to saving control cabinet space.
2、 Performance parameters
Speed range: Supports multiple speed adjustments such as 1500 rpm, 2000 rpm, 3000 rpm, and 4500 rpm to meet different operating conditions.
Maximum speed: 4500 revolutions per minute, suitable for high-speed application scenarios.
Output frequency: up to 550Hz, capable of high-frequency output, suitable for high-speed devices.
Load type: Heavy load, suitable for high load conditions, such as coiling machines, wire drawing machines, and other equipment.
3、 Environmental adaptability
Protection level: IP20， Capable of dust prevention and adaptable to dry industrial environments.
Operating temperature: -20 ℃ to 24 ℃, stable operation within a wide temperature range.
Color: White, simple appearance, in line with industrial equipment design standards.
4、 Functional characteristics
Communication protocol: Supports industrial Ethernet protocols such as EtherCAT, enabling multi axis synchronous control and improving system integration.
Control method: Built in PID controller, supporting closed-loop regulation of pressure, flow, etc., simplifying the system control process.
Safety Function: Integrated STO (Safe Torque Off) function to ensure the safe operation of the equipment.
Expansion interface: Supports digital/analog input/output, relay interface, compatible with external encoder feedback, and meets complex process requirements.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
