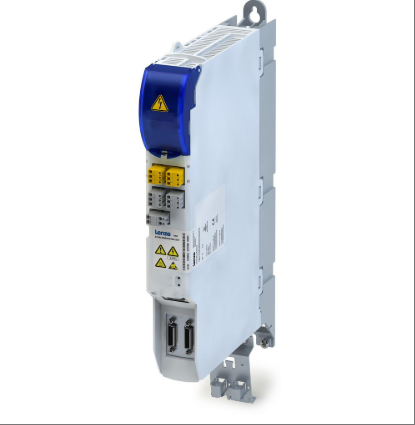

E70ACMSE0054SA2ETR
The E70ACMSE0054SA2ETR model product is a high-performance servo drive, which belongs to the core product of Lenze's i700 series in Germany. It is designed specifically for high dynamic response and precision control requirements in the field of industrial automation. This driver supports three-phase 380V/400V input voltage, is compatible with 5.5kW power range motors, has IP65 protection level, and can adapt to harsh industrial environments such as high dust and humidity. It is suitable for high load scenarios such as packaging machinery, CNC machine tools, robot joints, etc. Its core functions include integrating industrial bus protocols such as EtherCAT and CANopen, supporting multi axis synchronous control and CI402 standard operating mode (position/speed/torque control), with a dynamic response time of less than 1ms, meeting the requirements of high-speed start stop and frequent commutation; Built in STO safety torque shutdown function, compliant with SIL3 safety standards; Support multiple encoder feedback devices, compatible with complex motion control tasks such as robotic gantry systems and filling equipment. The product adopts a modular and compact design, supporting flange or foot installation, making it easy to seamlessly integrate with Lenze's full range of drive systems, providing reliable drive solutions for smart devices in Industry 4.0 environments.
Technical specifcations for E70ACMSE0054SA2ETR
Power and current:
Suitable motor power: 5.5 kW, suitable for medium and high load equipment.
Rated torque: 10 Nm, providing stable torque output.
Maximum speed: 4500 revolutions per minute, supports high-speed operation.
Speed range: Supports multi speed adjustment of 1500 rpm, 2000 rpm, 3000 rpm, and 4500 rpm to meet different load requirements.
Output current: Can adapt to high load current requirements, specific values need to refer to the manual.
Electrical parameters:
Input voltage: 380V three-phase AC, compatible with industrial standard power supply.
Frequency: 550 Hz, suitable for high-speed driving scenarios.
Protection and installation:
Protection level: IP65, with dustproof and waterproof capabilities, suitable for harsh environments.
Installation method: Supports flange or foot installation, compatible with various mechanical structures.
Physics and Materials:
Product dimensions: length 265mm, outer diameter 98mm, inner diameter 95mm, compact design saves space.
Weight: 30 kg, sturdy and durable structure.
Shell material: Plastic shell material, balancing lightweight and protective properties.
Control and Communication:
Control mode: Supports position, speed, and torque control (CIA 402 standard).
Communication interface: Integrated EtherCAT and CANopen bus protocols to achieve multi axis synchronization.
Function extension: Supports STO safe torque shutdown, compliant with SIL3 safety standards.
Environment and Certification:
Working temperature: -20 ℃ to+60 ℃, suitable for wide temperature range operation.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
