15862105 GST06-2N VBR 2E

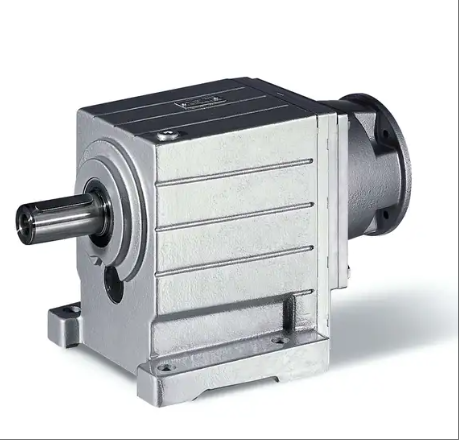

The GST06-2N VBR 2E type deceleration motor is a high-performance drive device designed specifically for industrial automation scenarios, with high precision, high reliability, and compact structural characteristics. This product adopts helical gear transmission technology, significantly reducing operating noise and improving transmission efficiency through optimized gear meshing design. It is suitable for fields such as printing machinery, packaging equipment, logistics sorting systems, etc. that require strict dynamic response and load stability. Its core parameters include rated power of 1.5-3kW, output speed range of 500-3600RPM, and peak torque of 200-600Nm. It supports horizontal installation and IP55 protection level, and can operate stably in complex working conditions such as -20 ℃ to+40 ℃ ambient temperature, dust, and humidity. In addition, this model is compatible with mainstream industrial bus protocols such as EtherCAT and PROFINET, which is convenient for seamless integration with PLC, HMI and other control systems. Its modular design supports customized expansion, which can flexibly adapt to different transmission ratios and output shaft configurations, significantly shortening the equipment commissioning cycle and reducing maintenance costs.
Technical specifcations for 15862105 GST06-2N VBR 2E
Basic mechanical parameters
Rated power: 1.5-3kW (typical application power range), suitable for driving small and medium-sized loads.
Output speed range: 500-3600RPM (configured according to transmission ratio), supports multi-stage speed regulation to match different working conditions.
Peak torque: 200-600Nm (instantaneous output capability under dynamic load), meeting high load start-up and acceleration requirements.
Number of poles: 3-pole design (number of poles inside the motor), optimized for dynamic response characteristics.
Protection level: IP55 (dustproof and waterproof standard), suitable for industrial sites with dust and humid environments.
Installation method: Horizontal installation (flange or foot fixed), compatible with mainstream equipment layouts.
2、 Transmission performance parameters
Gear type: helical gear transmission (low noise, high-efficiency design), reducing operating vibration and improving transmission stability.
Reduction ratio range: 3:1 to 512:1 (standard configuration), supporting customized transmission ratios to adapt to different loads.
Transmission efficiency: ≥ 95% (under rated conditions), reducing energy loss by optimizing gear meshing.
Return precision: ≤ 15 arc minutes (for medium low precision transmission scenarios), meeting the positioning requirements of packaging, logistics and other equipment.
3、 Electrical and Control Parameters
Rated voltage: 220V/380V (three-phase AC power supply), compatible with industrial power grid standards.
Control interface: Supports analog input (0-10V/4-20mA) or bus communication (EtherCAT/PROFINET), achieving seamless integration with PLC/HMI.
Feedback system: Optional incremental encoder or absolute value encoder to improve position control accuracy.
Dynamic response: Supports high-frequency start stop (starting frequency ≥ 500 times/hour), suitable for fast sorting, positioning and other scenarios.
4、 Environmental and reliability parameters
Working temperature range: -20 ℃ to+40 ℃ (short-term allowance of 50 ℃), covering conventional industrial environments.
Noise level: ≤ 70dB (A) (1 meter distance), reducing the impact on operators.
Mean Time Between Failures (MTBF): ≥ 50000 hours (under rated conditions) to ensure long-term stable operation of the equipment.
Lubrication method: Lifetime lubrication design (maintenance free cycle ≥ 20000 hours), reducing downtime maintenance costs.
5、 Application adaptation parameters
Typical application scenarios:
Logistics sorting system: driven by high-speed conveyor lines, supporting frequent start stop and forward/reverse rotation.
Packaging machinery: high-precision positioning of filling, sealing and other workstations.
Printing equipment: coil tension control and synchronous transmission.
Extension function: Supports external braking resistors (dynamic braking) or encoder frequency division modules, suitable for special working conditions.
Certification standards: CE (European Union Safety Certification), RoHS (Environmental Directive), in compliance with international industrial standards.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
