KEYENCE LR-ZB100CP New and Original High quality

LR-ZB100CP

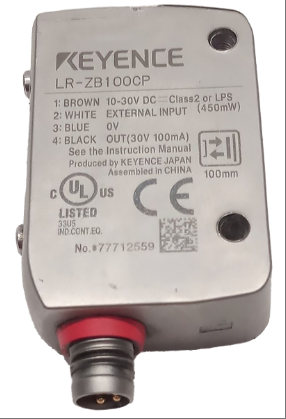

The LR-ZB100CP model is a high-performance digital laser sensor designed with a compact rectangular housing and M8 four pin connector. It supports adjustable detection distances from 35mm to 100mm and has dual stage difference resolution (35-50mm stage difference accuracy 1.5mm, 50-100mm stage difference accuracy 3mm) and 0.2mm display resolution. It is equipped with a 660nm red laser light source (Class 1 laser safety level) and can switch BGS/FGS background suppression mode to adapt to different detection scenarios. The core circuit adopts a 10-30VDC wide voltage power supply, with built-in power reverse protection, output overcurrent protection, and surge protection functions. The working current is ≤ 18mA at 24VDC, and the response time supports three levels of adjustment: 1.5m/10mS/50ms. The output interface is PNP collector open circuit type (maximum load 100mA/30VDC, residual voltage ≤ 2V). The equipment has a protection level of IP68/IP69K, with the ability to resist 1000lux incandescent lamps and 8000lux sunlight interference. It can operate stably in environments ranging from -10 ℃ to+50 ℃ and 35% -85% RH humidity. The body is made of SUS316L stainless steel and PES material display screen, supporting three-axis 1.5mm/10-55Hz anti vibration testing. It is widely used in industrial automation scenarios such as semiconductor packaging positioning, 3C product precision assembly, and food packaging liquid level detection.

Technical specifcations for LR-ZB100CP

Basic performance parameters

Detection principle: Adopting CMOS laser technology, supporting dual-mode switching of BGS (background suppression) and FGS (remote detection) to ensure stable detection in complex environments.

Detection distance: adjustable from 35mm to 100mm, with a segment accuracy of ± 1.5mm within the range of 35-50mm and ± 3mm within the range of 50-100mm, meeting high-precision requirements at different distances.

Light source type: Red laser (wavelength 660nm), complying with Class 1 laser safety standards to ensure the safety of operators.

Display resolution: 0.2mm, can clearly display detection data, easy to monitor and adjust.

Spot diameter: At a detection distance of 100mm, the spot diameter is approximately 2 × 1mm, ensuring the accuracy of detection.

2、 Electrical and interface parameters

Power Supply Voltage: Supports 10-30VDC wide voltage input, compatible with Class 2 or LPS power standards, suitable for different industrial power supply environments.

Power consumption: Power consumption is ≤ 18mA at 24VDC and ≤ 34mA at 12VDC. Low power design reduces operating costs.

Output type: PNP collector open circuit type, maximum load current of 100mA (below 30VDC), residual voltage ≤ 2V, ensuring stability of signal transmission.

Response time: Supports adjustable speeds of 1.5ms, 10ms, and 50ms to meet detection requirements at different speeds.

Connection method: Using M8 4-pin connector, supporting quick insertion and removal, easy to install and maintain.

3、 Environmental adaptability parameters

Protection level: IP68 (IEC60529 standard) and IP69K (DIN40050-9 standard), with dustproof, waterproof, and high-pressure cleaning capabilities, suitable for harsh industrial environments.

Environmental temperature: The working temperature range is -10 ℃ to+50 ℃, and the storage temperature range is -25 ℃ to+75 ℃, suitable for extreme temperature environments.

Humidity range: relative humidity of 35% to 85% (no condensation), ensuring stable operation in humid environments.

Anti vibration and anti impact: Supports X, Y, Z three-axis anti vibration testing at 10-55Hz and double amplitude of 1.5mm, as well as 1000m/s ² X, Y, Z three-axis anti impact testing to ensure reliability in vibration and impact environments.

Environmental lighting anti-interference: It can still work stably under 4000lux incandescent lamps and 8000lux sunlight, suitable for environments with complex lighting.

4、 Material and structural parameters

Shell material: Made of SUS316L stainless steel, it has excellent corrosion resistance and mechanical strength, suitable for industries with high hygiene requirements such as chemical and food industries.

Display screen material: PES (polyethersulfone) material, resistant to chemical corrosion, ensuring display clarity in harsh environments.

Lens cover material: PMMA (polymethyl methacrylate) with scratch resistant coating to protect the lens from damage.

Sealing material: The gasket and connector ring are made of FKM (fluororubber), which has excellent high temperature resistance and chemical corrosion resistance.

Weight: Approximately 55g (excluding cables), lightweight design for easy installation and integration.

Function and safety parameters

Indicator light function: Equipped with a 3-digit 7-segment red digital display, as well as yellow output indicator light, orange DATUM indicator light, and green one touch indicator light, real-time display of detection status and results.

Protection circuit: Built in power reverse protection, output overcurrent protection, output surge protection, and output reverse protection ensure the safety of equipment and operators.

External input function: Supports external input control for tuning and light projection stop, with tuning input time ≥ 35ms and light projection stop input time ≥ 2ms, meeting the requirements of automation control.

Insulation resistance: ≥ 20M Ω (500VDC) to ensure electrical isolation performance.

Voltage endurance: 1000VAC, 50/60Hz, 1 minute, ensuring safety in high voltage environments.
