KEYENCE IV-500MA New and Original High quality

IV-500MA

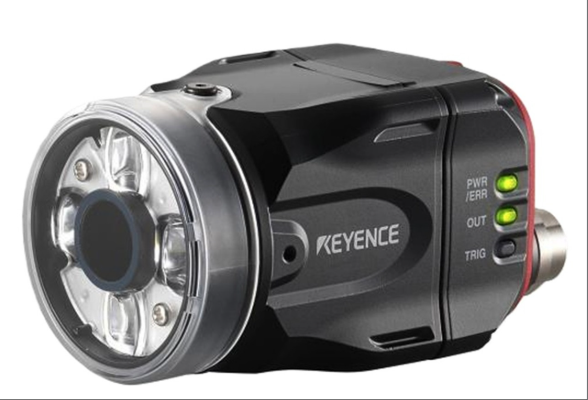

The IV-500MA model product is a high-precision image recognition sensor that uses a 1/3-inch black and white CMOS image receiving element. It has a resolution of 752 (horizontal) × 480 (vertical) pixels and supports flexible installation distances of 50mm to 500mm. It can automatically adjust the focus position according to the scene. Its field of view range varies with the installation distance, ranging from a minimum of 25 (horizontal) × 18 (vertical) mm to a maximum of 210 (horizontal) × 157 (vertical) mm, and is suitable for multi size object detection; The sensor is equipped with 16 professional tools (such as contour discrimination, color area analysis, position compensation, etc.) and 32 programmable switching modes. It achieves high-speed data transmission through an M12 4-pin connector and supports EtherNet/IP ™、 PROFINET and other industrial protocols can be seamlessly integrated with devices such as PLC and HMI; Its protection level reaches IP67, and it can operate stably in non freezing environments from 0 ° C to+50 ° C, 35% to 85% RH without condensation humidity. It also has seismic performance of 10 to 55Hz, double amplitude 1.5mm, and 500m/s ² impact resistance. It is suitable for industrial scenarios such as automotive manufacturing, electronic assembly, packaging testing, etc., especially for automated production lines that require high precision and reliability.

Technical specifcations for IV-500MA

Basic specifications

Type: Standard image recognition sensor, suitable for medium distance detection scenarios.

Installation distance: 50mm to 500mm, supporting flexible deployment over multiple distances.

Field of view: When installed at a distance of 50mm, it is 25 (horizontal) × 18 (vertical) mm, and when installed at 500mm, it expands to 210 (horizontal) × 157 (vertical) mm, meeting the detection needs of objects of different sizes.

Image receiving component: Using a 1/3-inch black and white CMOS sensor with 752 pixels (horizontal) × 480 pixels (vertical) to ensure high-resolution imaging.

Focus adjustment: Supports autofocus function, automatically adjusts the focus position during installation, and maintains stability during operation.

2、 Optical performance

Light source type: equipped with a red LED light source, supporting two modes of pulse lighting and DC lighting, which can be switched according to the scene.

Exposure time: adjustable range from 1/10 to 1/25000 seconds, suitable for detection needs under different lighting conditions.

3、 Detection and analysis tools

Tool configuration: Built in 16 professional detection tools, including contour discrimination, color area analysis, position compensation, etc., supporting accurate recognition in complex scenes.

Program switching: Supports 32 program presets, enables quick calling through M12 4-pin connector, and improves multitasking efficiency.

4、 Image storage and transmission

Storage capacity: Can save 300 images (extended to 210 when using FTP client function), supports NG only or all image save modes.

Transmission format: Supports BMP/JPEG/IV3P/TXT format, customizable file names for easy data management and analysis.

5、 Electrical and Interface

Working voltage: 24VDC ± 10% (including ripple), compatible with industrial power standards.

Current consumption: ≤ 0.6A, low-power design reduces operating costs.

Interface type: using M12 4-pin connector, supporting EtherNet/IP ™、 Industrial protocols such as PROFINET enable seamless integration with devices such as PLCs and HMIs.

6、 Environmental adaptability

Protection level: IP67 protection standard, excellent dust and waterproof performance.

Working temperature: 0 ° C to+50 ° C (no freezing), suitable for extreme industrial environments.

Humidity range: 35% to 85% RH (non condensing), ensuring stability in high humidity environments.

Seismic resistance: Tested for 2 hours on each of the X, Y, and Z axes with a frequency range of 10 to 55Hz and a double amplitude of 1.5mm to ensure reliability in vibration environments.

Impact resistance: can withstand 3 impacts in 6 directions at 500m/s ², with high mechanical strength.

7、 Input/output and indicator lights

Input configuration: Supports switching between passive contact input and voltage input, 6-point programmable input (IN1 to IN6), supports external triggering, program switching, and other functions.

Output configuration: open collector output, supporting NPN/PNP and N O. /N.C. Switching, 4-point programmable output (OUT1 to OUT4), can allocate signals such as comprehensive judgment results and error status.

Indicator lights: equipped with five sets of LED indicator lights including PWR/ERR, OUT, TRIG, STAT3, LINK/ACT, displaying real-time power, error, trigger and other status.

8、 Extended functionality

Network function: Supports FTP client function, enabling remote image transmission and backup.

Analysis tool: Provides analysis modes such as statistics and bar charts, supporting real-time monitoring of processing time, OK/NG quantity, and other data.

Special features: Supports advanced image processing functions such as HDR, high gain, digital scaling (x 2, x 4), brightness compensation, etc., to adapt to complex detection scenarios.
