KEYENCE GT2-72P New and Original High quality

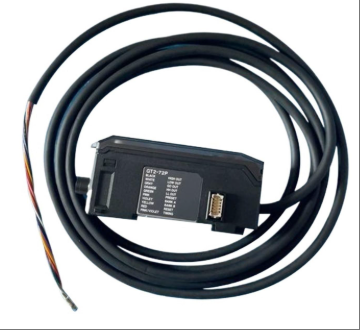

GT2-72P

The brand GT2-72P model product is a high-precision contact type digital sensor, designed with DIN rail installation, supporting 10 to 30 VDC wide voltage input (including 10% ripple), with a resolution of 0.1 μ m and a linearity of 0.1% F.S. It achieves stable output through A/D conversion technology and intelligent filtering algorithm, with environmental adaptability covering -10 to+50 ° C working temperature and 35 to 85% RH humidity. The protection level reaches IP40, and the main body adopts polycarbonate shell and polyformaldehyde touch key, equipped with PVC cable. The output type is PNP collector open circuit, the maximum control current is 50mA, the response time is adjustable (3/5/10/100/500/1000ms), compatible with PLC communication interface, widely used in precision displacement detection and position in industrial automation. Identify the scene.

Technical specifcations for GT2-72P

Electrical parameters

Power supply voltage: 10 to 30 VDC (including 10% ripple)

Power consumption:

Standard mode: Maximum 2200 mW (73.3 mA at 30 V)

Power saving mode: maximum 1700 mW (maximum 56.7 mA at 30 V)

Control output: PNP collector open circuit, maximum 30 V, 50 mA, residual voltage maximum 1 V

Display parameters

Measurement display: 6+1/2 bit 7-segment LED (red)

Bar display: 2-color 13 level (red, green)

Indicator lights: red, green

Display range: -1999.999.9 to 1999.999.9

Display resolution: 0.1 μ m

response time

Optional: 3/5/10/100/500/1000 ms (12/20/40/400/2000/4000 ms when using GT2 Pxxx)

Environmental parameters

Working temperature: -10 to+50 ° C (without freezing)

Relative humidity: 35 to 85% RH (non condensing)

Seismic resistance: 10 to 55 Hz, double amplitude of 1.5 mm, 2 hours each in the X, Y, and Z directions

Material and Structure

Main body shell: polycarbonate

Touch key: polyoxymethylene

Front panel: PET

Cable: PVC

Installation method

DIN rail installation

other characteristics

Compliant with UL/CSA standards

Control inputs: timing/preset/reset/channel input (no voltage input)

Control output options: HH/HI/GO/LO/LL

Application areas:

Suitable for high-precision measurement requirements in industrial automation control, such as displacement detection, position recognition, and other scenarios.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
